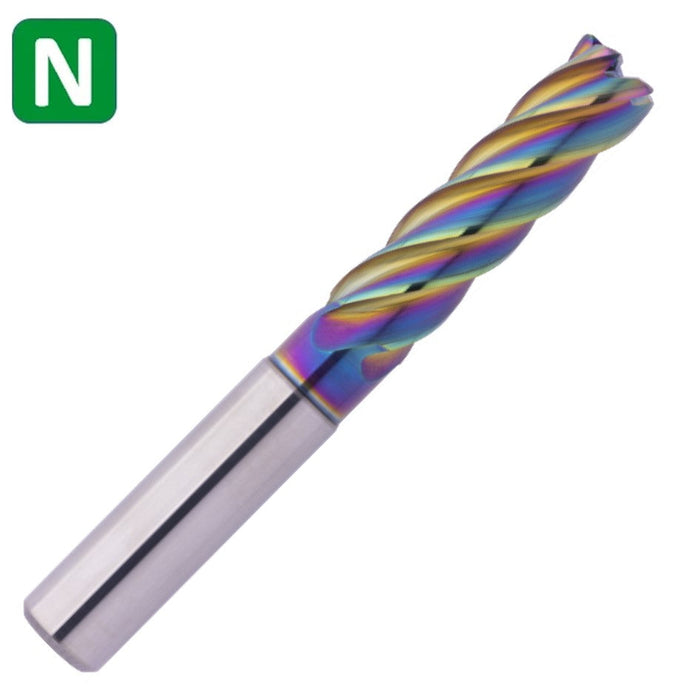

Solid Carbide End Mill 12mm 12R1x42-50x93xD12
- Special aerospace geometry optimized for vibration-free milling and ideal chip removal for thin-walled workpieces and complex internal machining
- Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
- Radius tolerance r > 1.5 mm: ± 0.005 mm
- Special chip chambers designed for the evacuation of extra long and fine chips
- For excellent surfaces and maximum dimensional accuracy
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: High Performance Cutting
Applications: Trimming, X
Features: Unequal tooth pitch, Coolant Duct System, Dynamic Helical Pitch, 3.5xD, Non-Center Cutting, Corner Radius
item code: 147002
