HSS Drill Tip of 118º Helix at 30º DIN338NSP 17/64"x69x109xD17/64" (10pcs)

HSS Drill Tip of 118º Helix at 30º DIN338NSP 17/64"x69x109xD17/64" (10pcs)

$27.03 - $27.03
$27.03
$27.03 - $27.03
$27.03

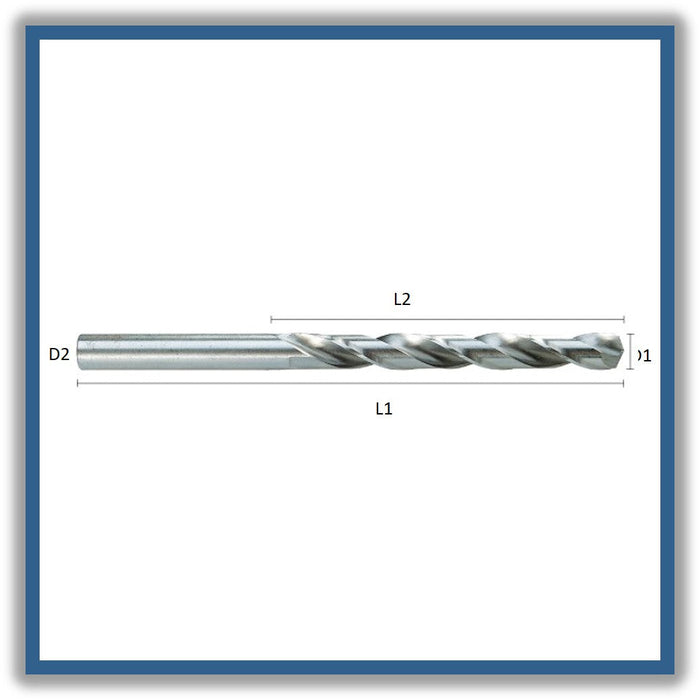

D1 (Cutting diameter): 17/64"
L2 ( Length of cut):  69mm
L1 (Total length): 109mm
D2 (Shank diameter): 17/64"
Helical pitch: 30



  • High Speed Steel HSS
  • Short series
  • Tip of 118º
  • Split Point
  • Helix at 30º
  • Cylindrical shank

Applications:

Soft magnetic steels, construction and cementation steels, and non-alloy and alloy carbon steels up to a strength of800N / mm2

 * MADE IN SPAIN *

item code: 251022
