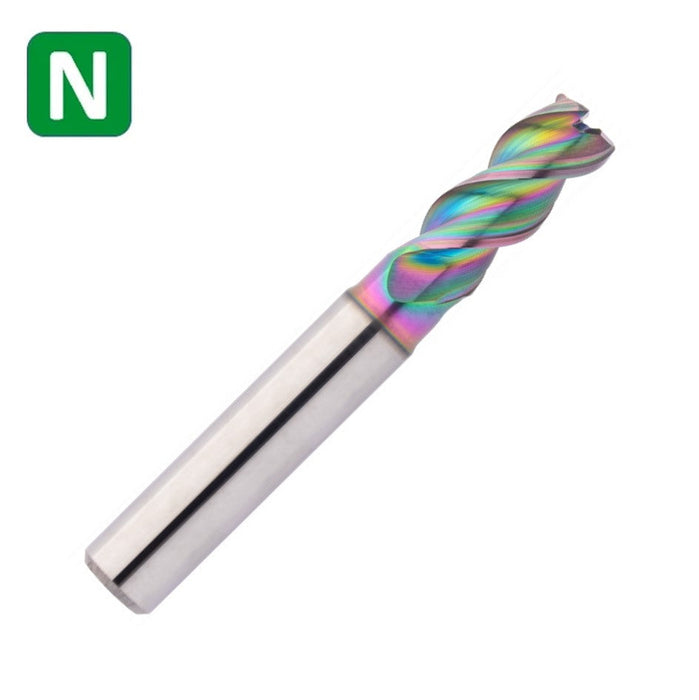

Solid Carbide End Mill 8mm 8R1x21-25x63xD8

Solid Carbide End Mill 8mm 8R1x21-25x63xD8

$52.43 - $52.43
$52.43
$52.43 - $52.43
$52.43

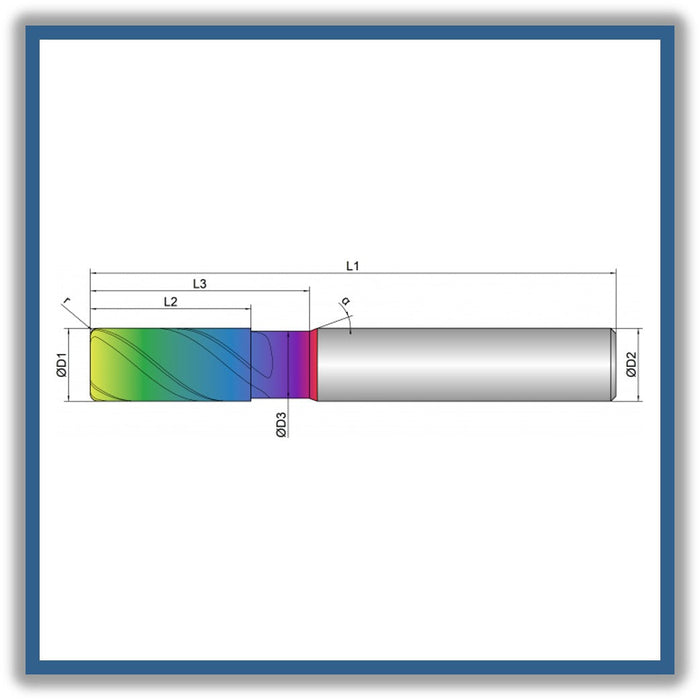

D1 (Cutting diameter): 8mm
D3 (Undercut diameter): 7.4mm
L2 ( Length of cut): 21mm
L3 (Length of undercut): 25mm
L1 (Total length): 63mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 3
R Corner radius: 1mm
Helical pitch: 45

  • Defined clearance angle for ideal stabilization at high infeeds
  • Special twist pitch for smooth running and soft cutting
  • Extra large chip chambers for extreme chip volume
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • For process-safe ramping and helical immersion
  • For roughing and finishing, up to 1.5xD into solid
  • Line cutting of 3D contours
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy:  Extended Trochoidal Cutting, High Speed Cutting, High Performance Cutting

Applications:  Line down, Trimming, Full groove, X, Y, Helical

Features: Uneven tooth pitch, 2XD, Center Cutting, Corner radius

item code: 349006
