Solid Carbide End Mill 20mm 20R3x41-52x104xD20
Original price
-
Original price
Original price
-
Current price

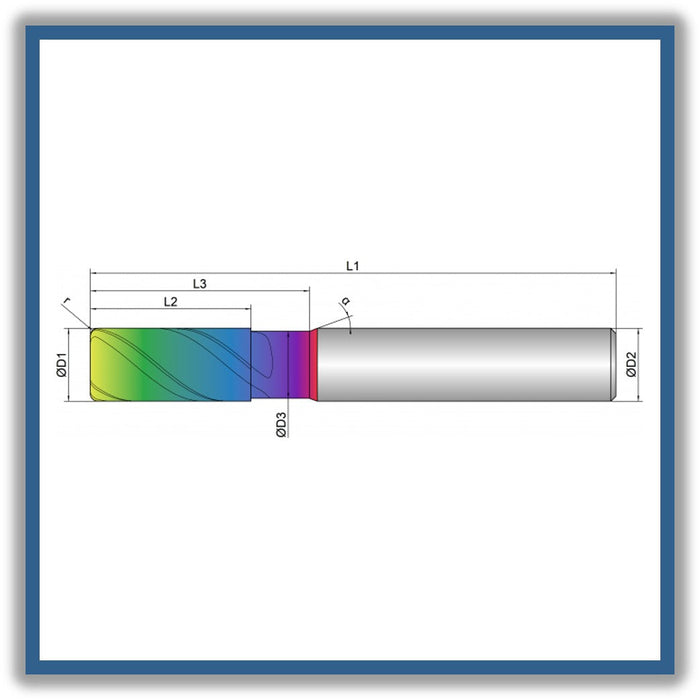

D1 (Cutting diameter): 20mm
D3 (Undercut diameter): 19mm
L2 ( Length of cut): 41mm
L3 (Length of undercut): 52mm
L1 (Total length): 104mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 3
R Corner radius: 3mm
Helical pitch: 45
- Defined clearance angle for ideal stabilization at high infeeds
- Special twist pitch for smooth running and soft cutting
- Extra large chip chambers for extreme chip volume
- Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
- Radius tolerance r > 1.5 mm: ± 0.005 mm
- For process-safe ramping and helical immersion
- For roughing and finishing, up to 1.5xD into solid
-
Line cutting of 3D contours
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: Extended Trochoidal Cutting, High Speed Cutting, High Performance Cutting
Applications: Line down, Trimming, Full groove, X, Y, Helical
Features: Uneven tooth pitch, 2XD, Center Cutting, Corner radius
item code: 349018
