3xD Solid Carbide Drill 140º tip TiAlN coating DIN 6535 with internal Coolant 8.3mm 8.3x61x103xD10

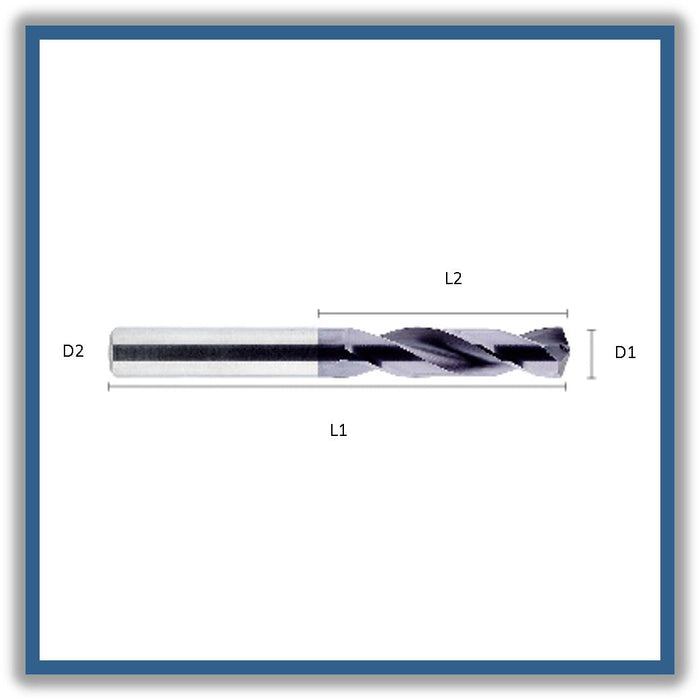

D1 (Cutting diameter): 8.3mm
L2 (Length of cut): 61mm
L1 (Total length): 103mm
D2 (Shank diameter): 10
D3 (Undercut diameter) : 30mm

• Solid carbide HM
• Drilling depth 3xd
• 140º tip
• 30º propeller
• Cylindrical handle DIN 6535HA
• TiAlN coating
• Internal cooling


Applications:

Soft magnetic steels, construction and carburizing steels, and non-alloyed and alloyed carbon steels up to a strength of 55HRC

item code: 234054
