3xD Solid Carbide Drill 140º tip TiAlN coating DIN 6535 with internal Coolant 18.8mm 18.8x79x131xD20

3xD Solid Carbide Drill 140º tip TiAlN coating DIN 6535 with internal Coolant 18.8mm 18.8x79x131xD20

$304.86 - $304.86
$304.86
$304.86 - $304.86
$304.86

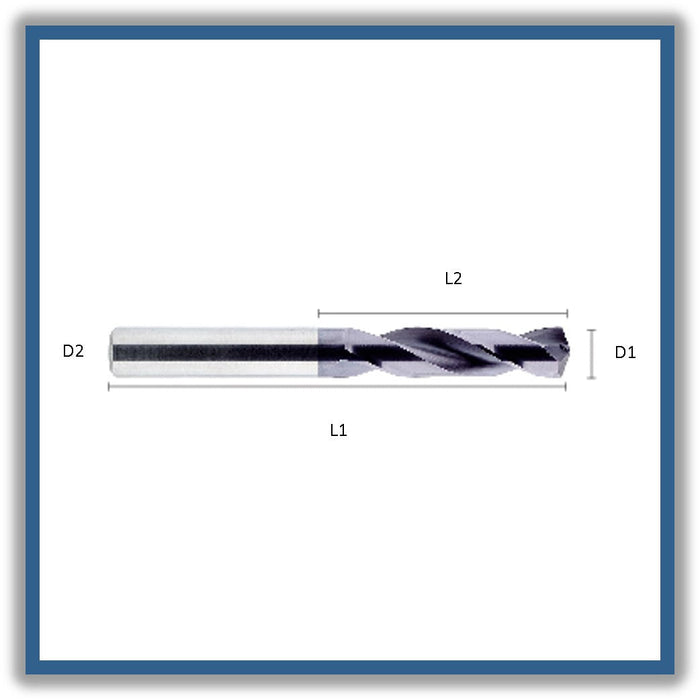

D1 (Cutting diameter): 18.8mm
L2 (Length of cut): 79mm
L1 (Total length): 131mm
D2 (Shank diameter): 20
D3 (Undercut diameter) : 30mm
  • Solid carbide HM
  • Drilling depth 3xd
  • 140º tip
  • 30º propeller
  • Cylindrical handle DIN 6535HA
  • TiAlN coating
  • Internal cooling

Applications:

Soft magnetic steels, construction and carburizing steels, and non-alloyed and alloyed carbon steels up to a strength of 55HRC

 * MADE IN SPAIN *



item code: 234113
