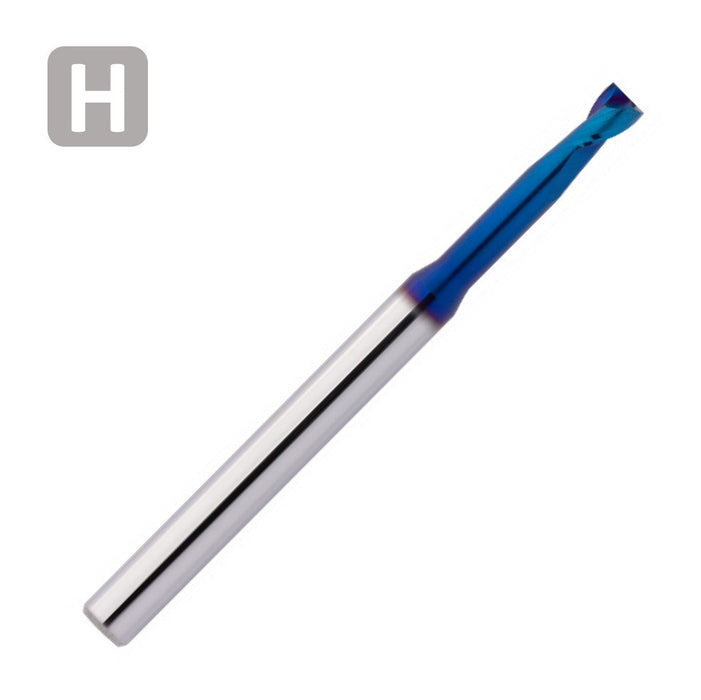

Solid Carbide End Mill 2mm 2x3-25x60xD4

Solid Carbide End Mill 2mm 2x3-25x60xD4

$47.57 - $47.57
$47.57
$47.57 - $47.57
$47.57


D1 (Cutting diameter): 2mm
D3 (Undercut diameter): 1.91mm
L2 ( Length of cut): 3mm
L3 (Length of undercut): 25mm
L1 (Total length): 60mm
D2 (Shank diameter): 4mm
Z (Number of cutting edges): 2
Helical pitch: 30



  • Ultrafine carbide grade developed for machining hardened steels
  • Optimized face geometry for long tool life and highest
    dimensional accuracy
  • Reinforced core for milling up to 70 HRC
  • Tolerance D1: -0.001/-0.006 mm
  • Tolerance D3: 0/-0.02 mm
 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: d04

Coating: AlphaDura Navy

Strategy: High Speed cutting

Applications: Trimming, Full slot, X,Y,helical

Features:  Center Cutting, Sharp-edged

item code: 118107
