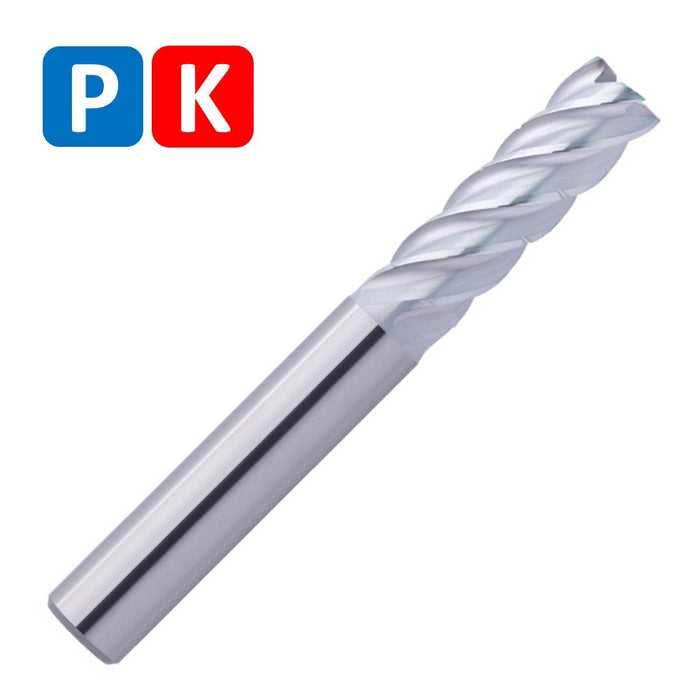

Solid Carbide End Mill 6mm 6R0.15x18-25x63xD6

Solid Carbide End Mill 6mm 6R0.15x18-25x63xD6

$55.14 - $55.14
$55.14
$55.14 - $55.14
$55.14
D1 (Cutting diameter): 6mm
D3 (Undercut diameter): 5.8mm
L2 ( Length of cut): 18mm
L3 (Length of undercut): 25mm
L1 (Total length): 63mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 5
R Corner radius: 0.15mm
Helical pitch: 40
  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion



 * MADE IN GERMANY *

Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y, Helical

Features:  Unequal Tooth Pitch, Chip Breaking, 3xD, Dynamic Helical Pitch, Center Cutting,  Corner Radius

item code: 133001
