Solid Carbide End Mill 10mm 10R0.2x42x90xD10

To see price please | Register

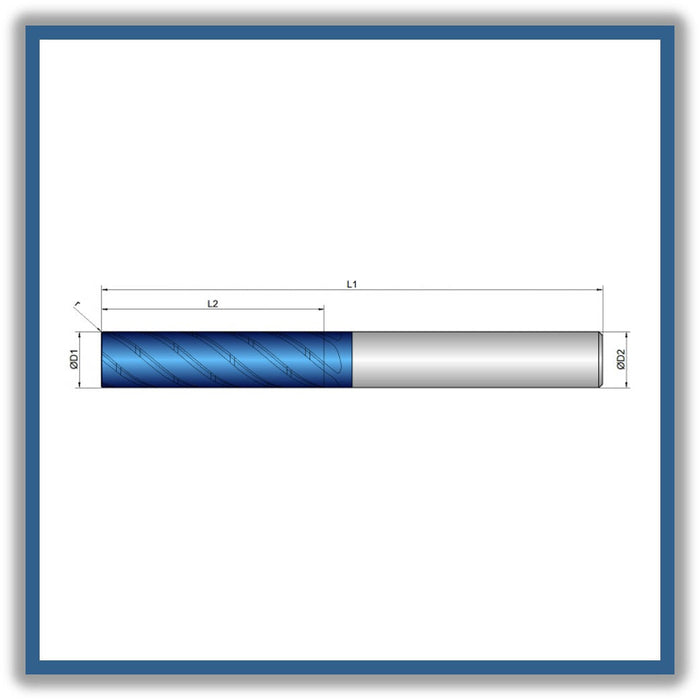

D1 (Cutting diameter): 10mm
L2 ( Length of cut)42mm
L1 (Total length): 90mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 6
R Corner radius: 0.2
Helical pitch: 40

  • 6 cutting edges for best performance and an excellent material removal rate
  • Optimized cutting edges and chip chambers to effectively prevent built-up edges and chip stuck
  • Ideal chip evacuation, even with high feed rates and big radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion

 * MADE IN GERMANY *



Cooling: water max

Tolerance: e8

Coating: AlphaNox Navy X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X,Y, Helical

Features: Unequal Tooth Pitch, Chip Breaking, 4XD, Dynamic Helical Pitch, Non-Center Cutting, Corner Radius

item code:195003
