HSS Drill Tip of 118º Helix at 18º DIN338H 3.25mm 3.25x36x65xD3.25

HSS Drill Tip of 118º Helix at 18º DIN338H 3.25mm 3.25x36x65xD3.25

$4.32 - $4.32
$4.32
$4.32 - $4.32
$4.32

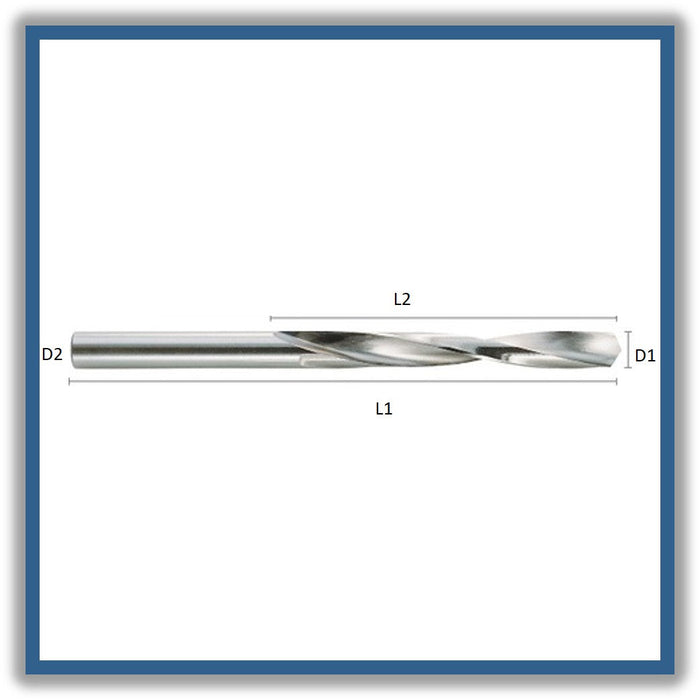

D1 (Cutting diameter): 3.25mm
L2 ( Length of cut): 36mm
L1 (Total length): 65mm
D2 (Shank diameter): 3.25mm
Helical pitch: 18



  • High Speed Steel HSS
  • Short series
  • Tip of 118º
  • Helix at 18º
  • Cylindrical shank

Applications:

Copper, brass, bronze and short chip materials

 * MADE IN SPAIN *

item code: 253010
