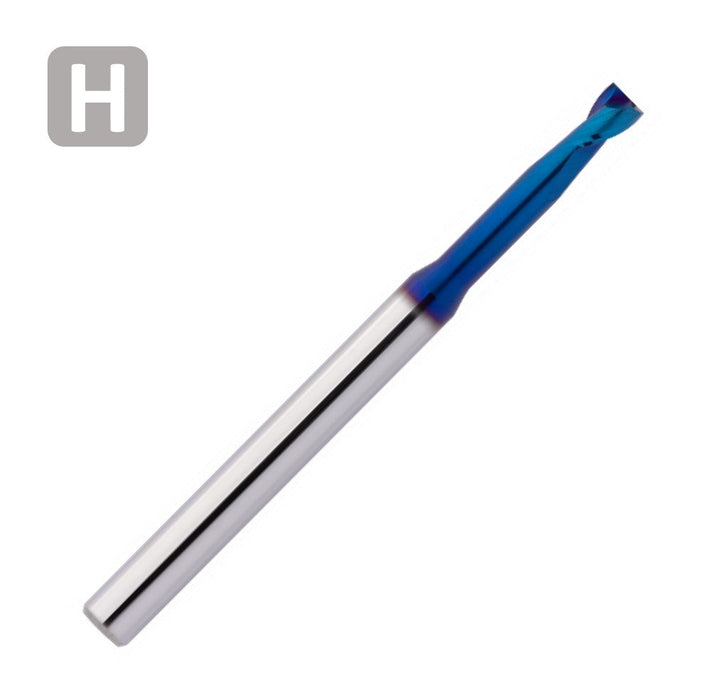

Solid Carbide End Mill 2.5mm 2.5x3.7-50x100xD4

Solid Carbide End Mill 2.5mm 2.5x3.7-50x100xD4

$59.19 - $59.19
$59.19
$59.19 - $59.19
$59.19


D1 (Cutting diameter): 2.5mm
D3 (Undercut diameter): 2.41mm
L2 ( Length of cut): 3.7mm
L3 (Length of undercut): 50mm
L1 (Total length): 100mm
D2 (Shank diameter): 4mm
Z (Number of cutting edges): 2
Helical pitch: 30



  • Ultrafine carbide grade developed for machining hardened steels
  • Optimized face geometry for long tool life and highest
    dimensional accuracy
  • Reinforced core for milling up to 70 HRC
  • Tolerance D1: -0.001/-0.006 mm
  • Tolerance D3: 0/-0.02 mm
 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: d04

Coating: AlphaDura Navy

Strategy: High Speed cutting

Applications: Trimming, Full slot, X,Y,helical

Features:  Center Cutting, Sharp-edged

item code: 118123
