3xD Solid Carbide Drill 140º tip TiAlN coating DIN 6535 6.3mm 6.3x34-43x79xD8

3xD Solid Carbide Drill 140º tip TiAlN coating DIN 6535 6.3mm 6.3x34-43x79xD8

$41.35 - $41.35
$41.35
$41.35 - $41.35
$41.35

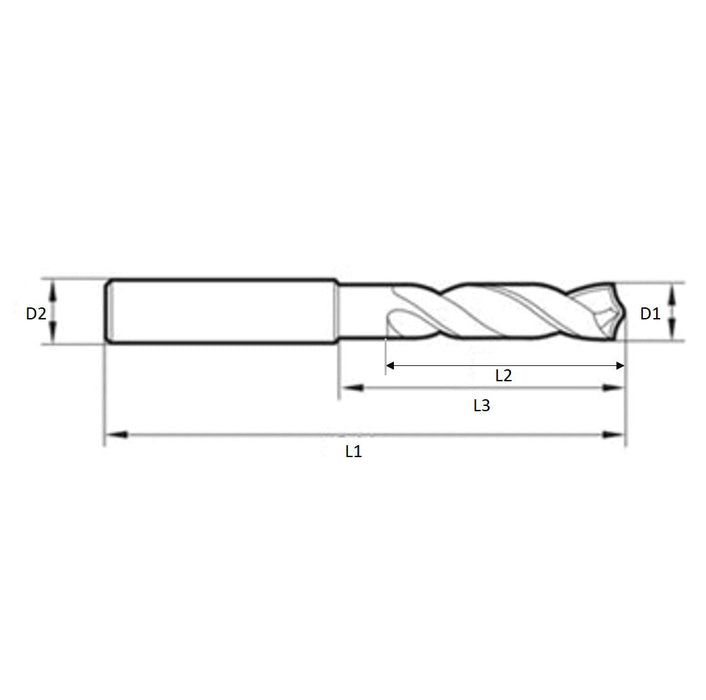

D1 (Cutting diameter): 6.3mm
L2 ( Length of cut): 34mm
L3 (Length of undercut): 43mm
L1 (Total length): 79mm
D2 (Shank diameter): 8mm
Helical pitch: 30



  • Solid carbide HM
  • 3xd drilling depth
  • 140º tip
  • 30º propeller
  • Cylindrical shank DIN 6535HA
  • TiAlN coating

Applications:

Soft magnetic steels, construction and carburizing steels, and unalloyed and alloyed carbon steels up to a strength of 55HRC

 * MADE IN SPAIN *



item code: 233034
