Solid Carbide End Mill 8mm 8x4.8-24x70xD8

Solid Carbide End Mill 8mm 8x4.8-24x70xD8

$69.73 - $69.73
$69.73
$69.73 - $69.73
$69.73

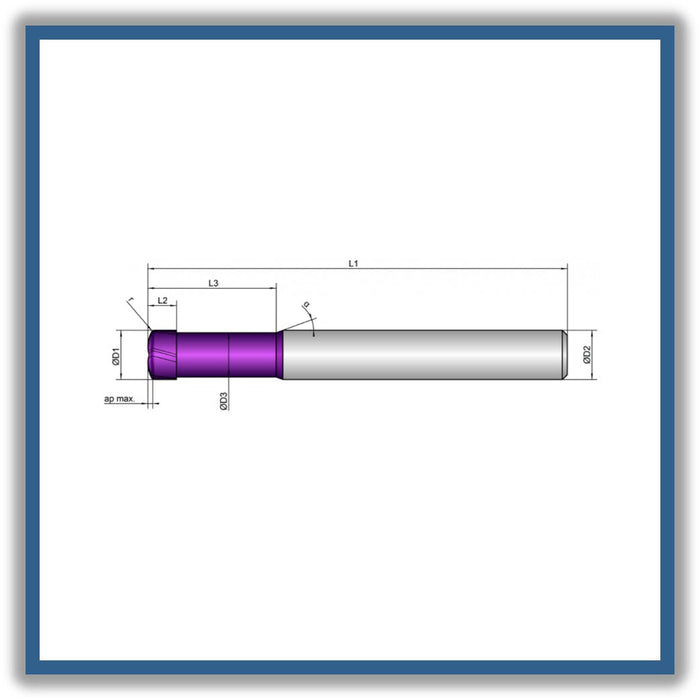

D1 (Cutting diameter): 8mm
D3 (Undercut diameter): 7mm
L2 ( Length of cut): 4.8mm
L3 (Length of undercut): 24mm
L1 (Total length): 70mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 5
Helical pitch: 15

  • Geometry with tangential transitions for HSC milling
  • Highly polished chip space for safe chip evacuation

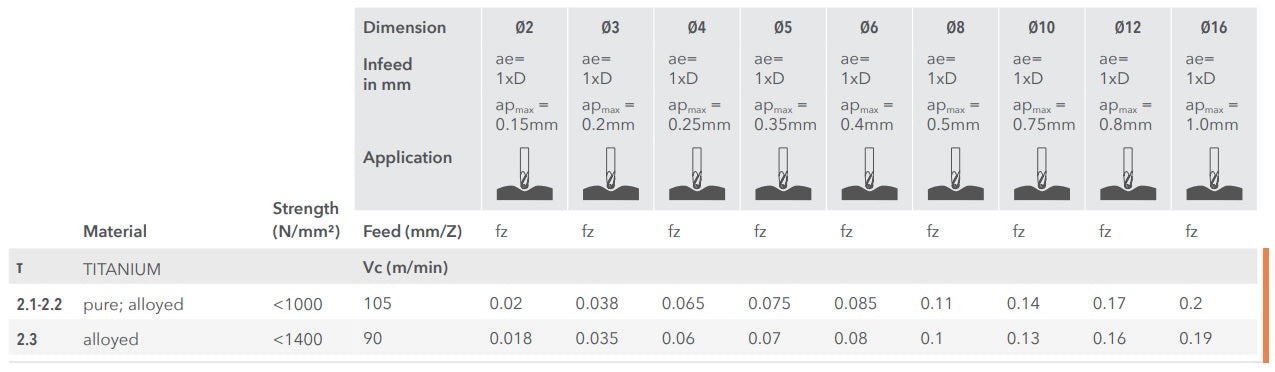

  • Check programming radius and ap max. according to the variant table
  • For roughing and finishing under HSC conditions

 * MADE IN GERMANY *



Cooling: water max

Tolerance: h9

Coating: AlphaFusion Violet X

Strategy: High Speed Cutting

Applications: Multipass Milling, X, Y, Helical

Features: Unequal Tooth Pitch, Non-Center Cutting, 0,5XD, Corner Radius

item code: 227006
