Solid Carbide End Mill 3mm 3x1.5-15x54xD6

Solid Carbide End Mill 3mm 3x1.5-15x54xD6

$54.32 - $54.32
$54.32
$54.32 - $54.32
$54.32

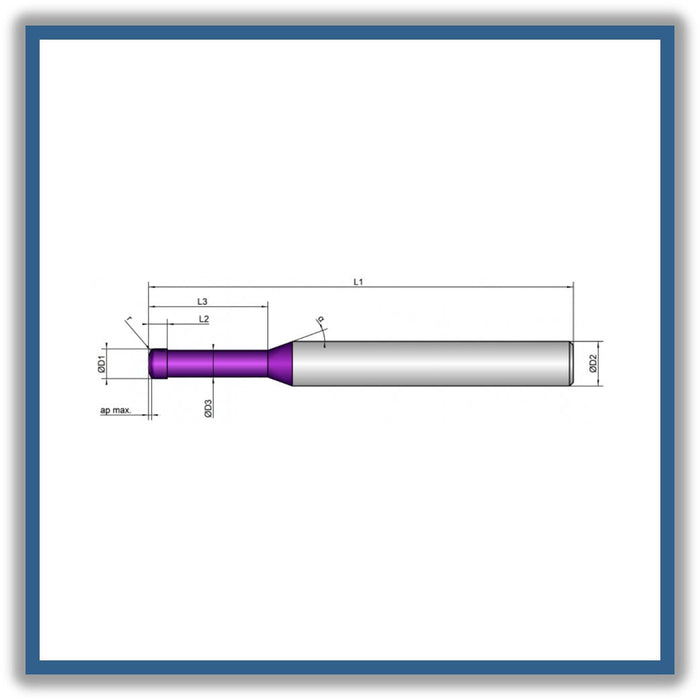

D1 (Cutting diameter): 3mm
D3 (Undercut diameter): 2.7mm
L2 ( Length of cut): 1.5mm
L3 (Length of undercut): 15mm
L1 (Total length): 54mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 2
Helical pitch: 15

  • Geometry with tangential transitions for HSC milling
  • Highly polished chip space for safe chip evacuation

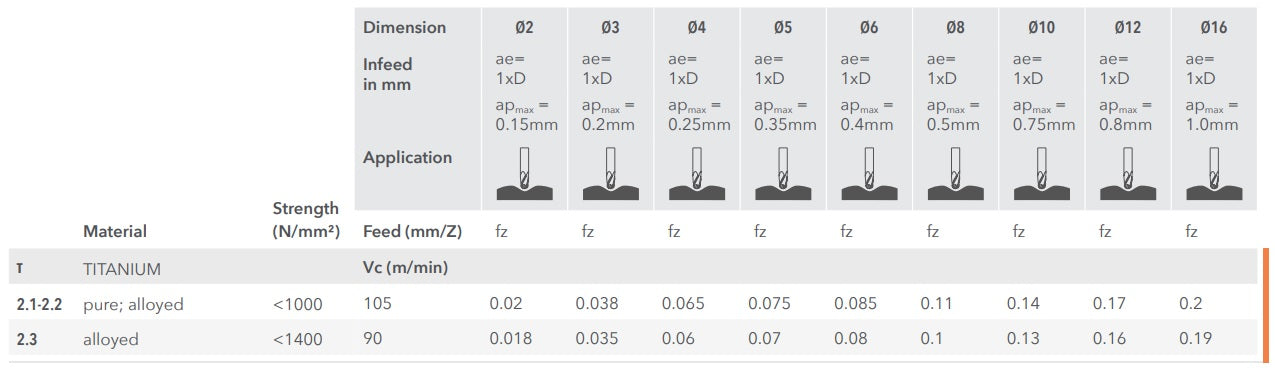

  • Check programming radius and ap max. according to the variant table
  • For roughing and finishing under HSC conditions

 * MADE IN GERMANY *



Cooling: water max

Tolerance: h9

Coating: AlphaFusion Violet X

Strategy: High Speed Cutting

Applications: Multipass Milling, X, Y, Helical

Features: Unequal Tooth Pitch, Non-Center Cutting, 0,5XD, Corner Radius

item code: 227002
