Solid Carbide End Mill 20mm 20R0.3x41-52x104xD20
Original price
-
Original price
Original price
-
Current price

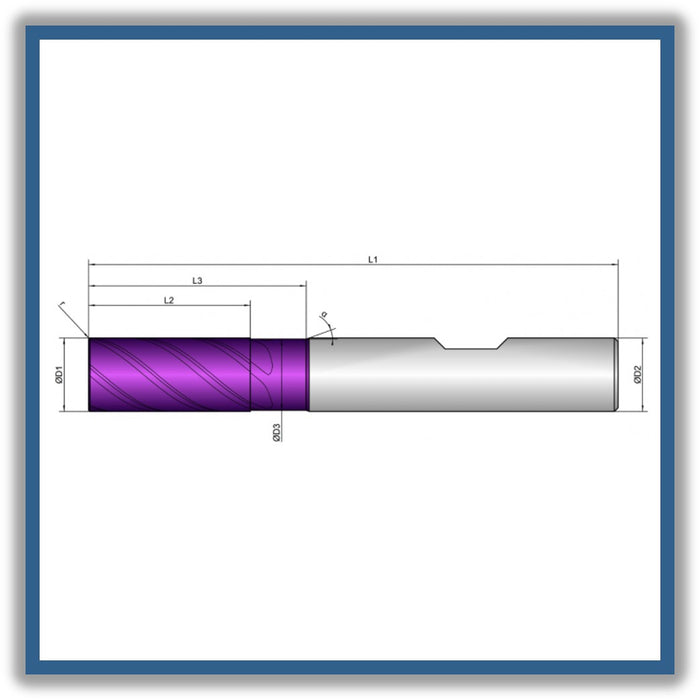

D1 (Cutting diameter): 20mm
D3 (Undercut diameter): 19.5mm
L2 (Length of cut): 41mm
L3 (Length of undercut): 52mm
L1 (Total length): 104mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 5
R (Corner radius): 0.3
Helical Pitch: 40
- Unequal tooth pitch combined with variable helical pitch for smooth running
- Highly polished chip space for safe chip evacuation
- Reinforced face for process reliable, helical diving
- For roughing and finishing
* MADE IN GERMANY *
Cooling: Water max
Tolerance: e8
Coating: AlphaFusion Violet X

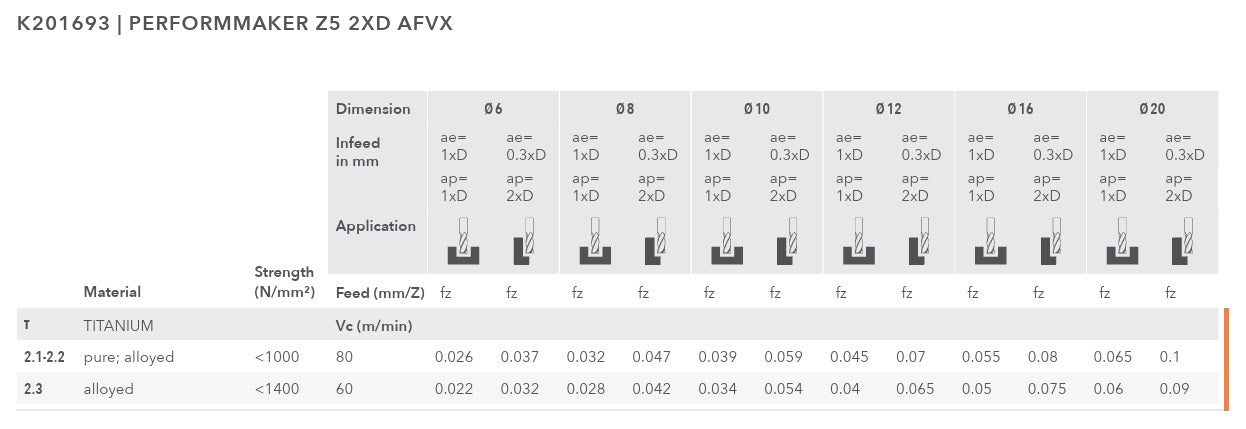

Strategy: Extended Trochoidal Cutting, High Performance Cutting
Applications: Trimming, Full slot, X, Y, Helical
Features: Unequal tooth pitch, 2XD, Dynamic helical pitch, Center cutting, Corner radius
item code: 309006
