Solid Carbide End Mill 20mm 20C0.3x41-54x104xD20
Original price
-
Original price
Original price
-
Current price

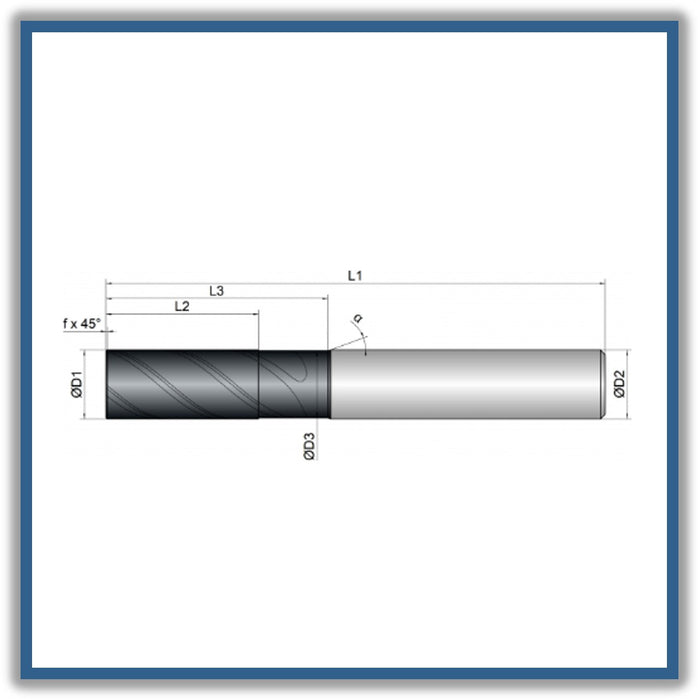

D1 (Cutting diameter): 20mm
D3 (Undercut diameter): 19.50mm
L2 ( Length of cut): 41mm
L3 (Length of undercut): 54mm
L1 (Total length): 104mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 4
45DEG Corner chamfer: 0.3mm
Helical pitch: 40
- Adapted clearance angle for reliable machining
- Unequal tooth pitch for smooth running
- Large chip chambers for good chip evacuation
- Suitability for Roughing & Finishing
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: e8
Coating: BetaUni Iron
Strategy: High performance cutting, Universal Machining
Applications: Trimming, Full slot, X,Y, helical
Features: Unequal tooth pitch, 2xD, Center Cutting, Corner bevel
item code: 101010
