Solid Carbide End Mill 16mm 16R8x20x82xD16

Solid Carbide End Mill 16mm 16R8x20x82xD16

$126.76 - $126.76
$126.76
$126.76 - $126.76
$126.76

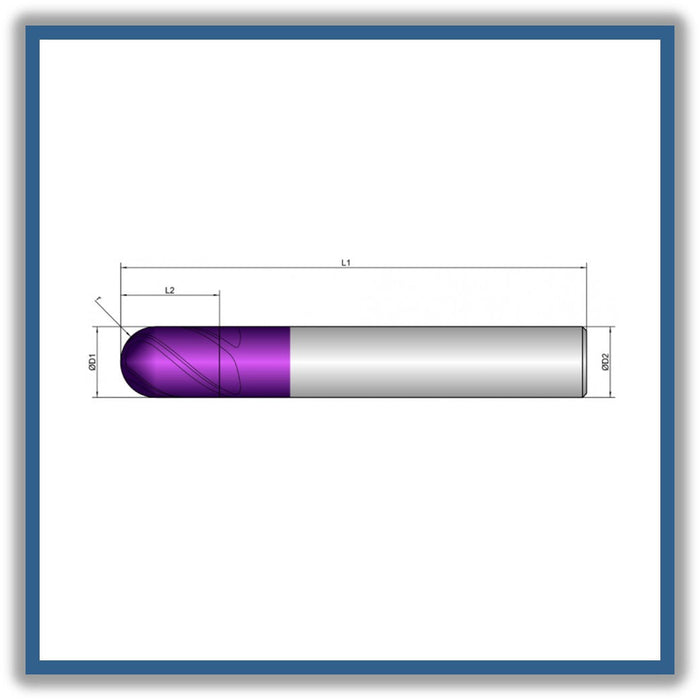

D1 (Cutting diameter):16mm
L2 ( Length of cut):20mm
L1 (Total length): 82mm
D2 (Shank diameter):16mm
Z (Number of cutting edges):4
R Corner radius:8
Helical pitch: 40

  • Highly polished chip space for safe chip evacuation
  • 4 cutting edges to the center
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • For roughing and finishing
 * MADE IN GERMANY *



Cooling: water max

Tolerance: f8

Coating: AlphaFusion Violet X

Strategy: High Speed Cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features: Center Cutting, 1XD, Corner Radius

item code: 223009
