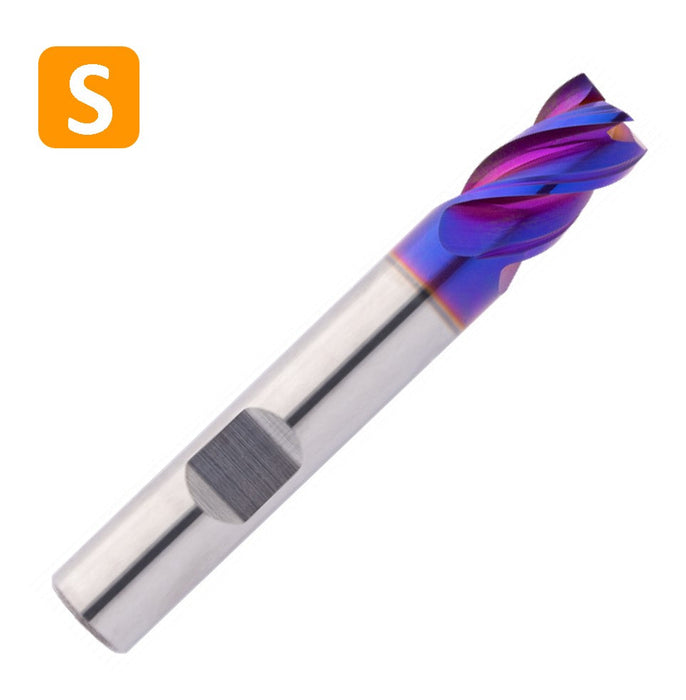

Solid Carbide End Mill 16mm 16R0.3x22x82xD16

Solid Carbide End Mill 16mm 16R0.3x22x82xD16

$130.27 - $130.27
$130.27
$130.27 - $130.27
$130.27


D1 (Cutting diameter): 16mm
L2 ( Length of cut): 22mm
L1 (Total length): 82mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 4
R Corner radius: 0.3
Helical pitch: 40

  • Unequal tooth pitch combined with variable helical pitch for smooth running
  • Highly polished chip space for safe chip evacuation
  • Reinforced face for process reliable, helical diving
  • For roughing and finishing, up to 1xD full slot

 * MADE IN GERMANY *



Cooling: water max

Tolerance: e8

Coating: AlphaFusion Violet X

Strategy: Extended Trochoidal Cutting, High Performance Cutting

Applications: Trimming, Full Slot, X, Y, Helical

Features: Unequal Tooth Pitch, Dynamic Helical Pitch, Center Cutting, 1,5XD, Corner Radius

item code:203007
