Solid Carbide End Mill 12mm 12x6.8-30x93xD12

Solid Carbide End Mill 12mm 12x6.8-30x93xD12

$123.24 - $123.24
$123.24
$123.24 - $123.24
$123.24

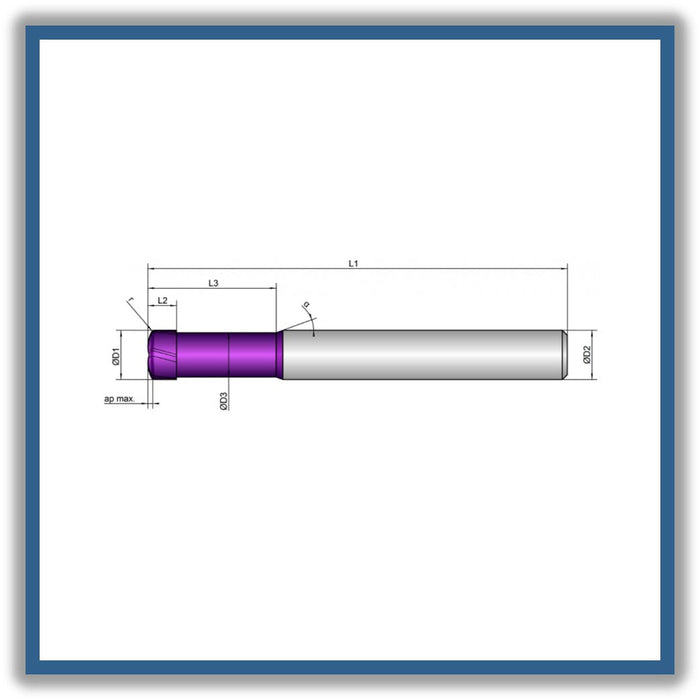

D1 (Cutting diameter): 12mm
D3 (Undercut diameter): 11mm
L2 ( Length of cut): 6.8mm
L3 (Length of undercut): 30mm
L1 (Total length): 93mm
D2 (Shank diameter): 12mm
Z (Number of cutting edges): 5
Helical pitch: 15

  • Geometry with tangential transitions for HSC milling
  • Highly polished chip space for safe chip evacuation

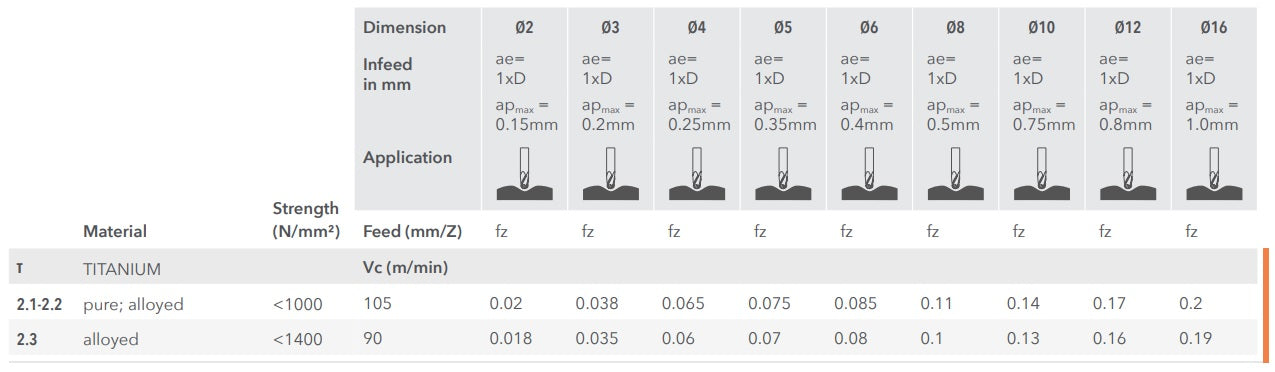

  • Check programming radius and ap max. according to the variant table
  • For roughing and finishing under HSC conditions

 * MADE IN GERMANY *



Cooling: water max

Tolerance: h9

Coating: AlphaFusion Violet X

Strategy: High Speed Cutting

Applications: Multipass Milling, X, Y, Helical

Features: Unequal Tooth Pitch, Non-Center Cutting, 0,5XD, Corner Radius

item code: 227008
