Solid Carbide End Mill 10mm 10R5x14x66xD10
Original price
-
Original price
Original price
-
Current price

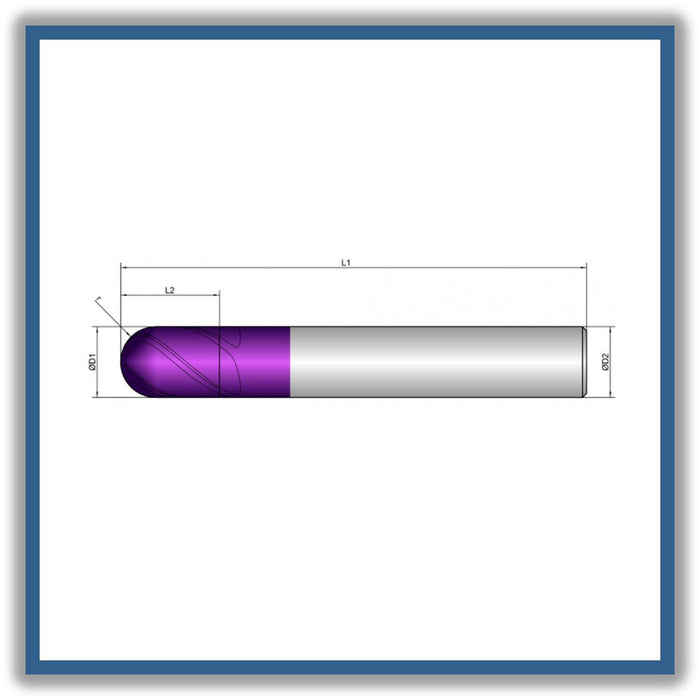

D1 (Cutting diameter):10mm
L2 ( Length of cut): 14mm
L1 (Total length): 66mm
D2 (Shank diameter):10mm
Z (Number of cutting edges): 4
R Corner radius:5
Helical pitch: 40
- Highly polished chip space for safe chip evacuation
- 4 cutting edges to the center
- Radius tolerance r ≤ 2 mm: ± 0.003 mm
- Radius tolerance r > 2 mm: ± 0.005 mm
- For roughing and finishing
* MADE IN GERMANY *
Cooling: water max
Tolerance: f8
Coating: AlphaFusion Violet X
Strategy: High Speed Cutting
Applications: Engraving, Multipass Milling, X, Y, Z
Features: Center Cutting, 1XD, Corner Radius
item code: 223007
