Solid Carbide End Mill 8mm 8C0.2x19-25x63xD8

Solid Carbide End Mill 8mm 8C0.2x19-25x63xD8

$37.03 - $37.03
$37.03
$37.03 - $37.03
$37.03
8

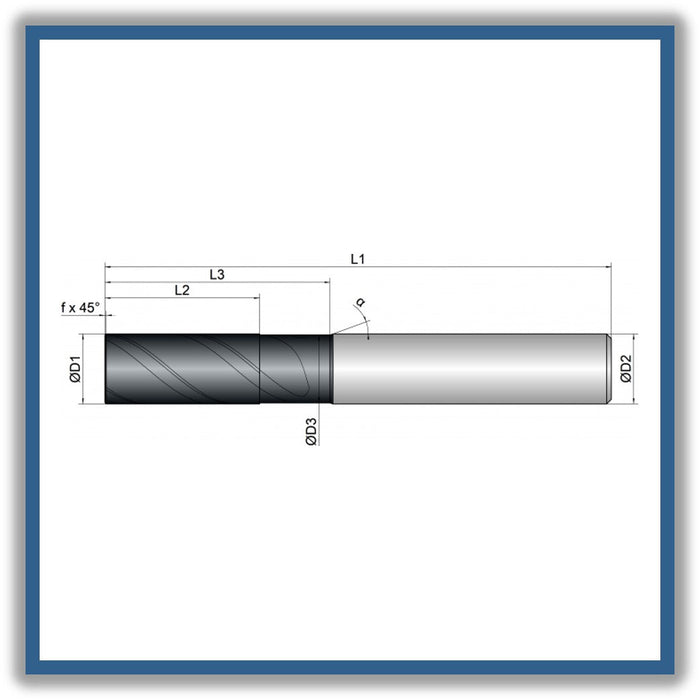

D1 (Cutting diameter): 8mm
D3 (Undercut diameter): 7.7mm
L2 ( Length of cut): 19mm
L3 (Length of undercut): 25mm
L1 (Total length): 63mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 3
45DEG Corner chamfer: 0.2mm
Helical pitch: 45

  • Adapted clearance angle for reliable machining
  • Unequal tooth pitch for smooth running
  • Large chip chambers for good chip evacuation
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: BetaUni Iron

Strategy: Extended Trochoidal Cutting, High Performance Cutting, Universal Machining

Applications: Trimming, Full Slot, X, Y, Helical

Features: Unequal tooth pitch, 2xD, Center Cutting, Corner Bevel

item code: 153005
