Solid Carbide End Mill 8mm 8C0.2x12x58xD8

Solid Carbide End Mill 8mm 8C0.2x12x58xD8

$30.27 - $30.27
$30.27
$30.27 - $30.27
$30.27

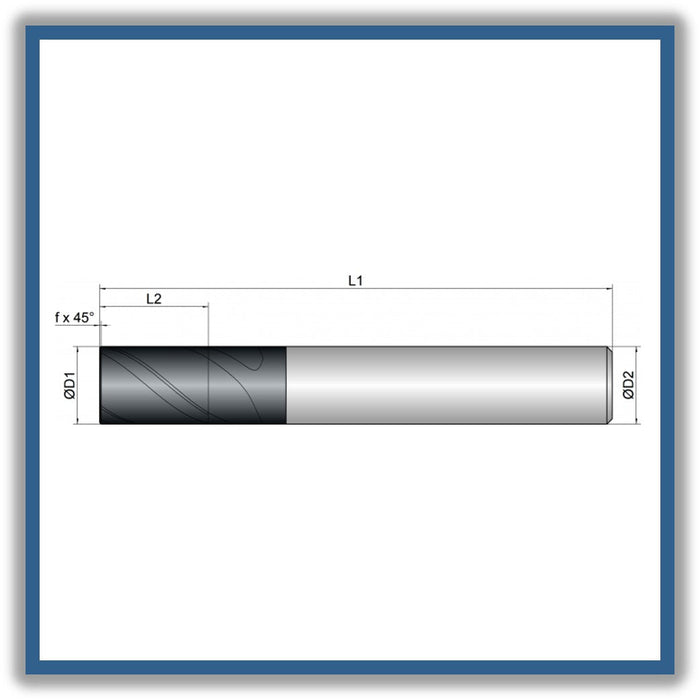

D1 (Cutting diameter): 8mm
L2 ( Length of cut): 12mm
L1 (Total length): 58mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 3
45DEG Corner chamfer: 0.2mm
Helical pitch: 45


  • Adapted clearance angle for reliable machining
  • Unequal tooth pitch for smooth running
  • Large chip chambers for good chip evacuation



 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: BetaUni Iron

Strategy: Extended Trochoidal Cutting, High Performance Cutting, Universal Machining

Applications: Trimming, Full Slot, X, Y, Helical

Features:  Unequal Tooth Pitch, 1.5xD, Center Cutting, Corner Bevel

item code: 152005
