Solid Carbide End Mill 6mm 6R0.15x13-19x57xD6

Solid Carbide End Mill 6mm 6R0.15x13-19x57xD6

$40.54 - $40.54
$40.54
$40.54 - $40.54
$40.54

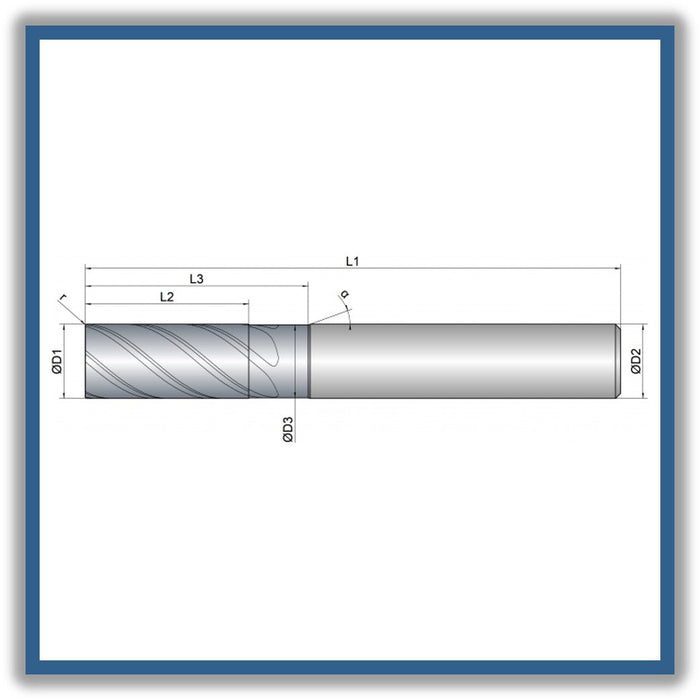

D1 (Cutting diameter): 6mm
D3 (Undercut diameter): 5.8mm
L2 ( Length of cut): 13mm
L3 (Length of undercut): 19mm
L1 (Total length): 57mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 5
R Corner radius: 0.15mm
Helical pitch: 40




  • Unequal tooth pitch combined with variable helical pitch for
    smooth running
  • Defined cutting edge geometry for stabilization at high infeeds
  • Reinforced tool core for high breakage resistance
  • For roughing and finishing
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy:  Extended Trochoidal Cutting, High Performance Cutting

Applications:  Trimming, X, Y, Helical

Features: Unequal Tooth Pitch, 2xD, Dynamic Helical Pitch, Center Cutting, Corner Radius

item code: 116001
