Solid Carbide End Mill 4mm 4C0.1x11-17x57xD6
Original price
-
Original price
Original price
-
Current price

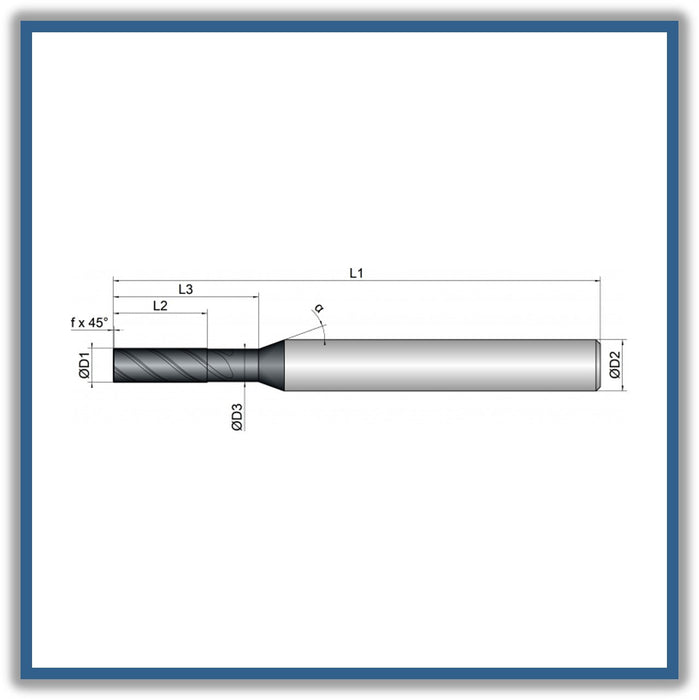

D1 (Cutting diameter): 4mm
D3 (Undercut diameter): 3.8mm
L2 ( Length of cut): 11mm
L3 (Length of undercut):17mm
L1 (Total length): 57mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
45DEG Corner chamfer:0.1mm
Helical pitch: 40
- Adapted clearance angle for reliable machining
- Unequal tooth pitch for smooth running
- Large chip chambers for good chip evacuation
- Suitability for Roughing & Finishing
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: e8
Coating: BetaUni Iron
Strategy: High performance cutting, Universal Machining
Applications: Trimming, Full slot, X,Y, helical
Features: Unequal tooth pitch, 2xD, Center Cutting, Corner bevel
item code: 101003
