Solid Carbide End Mill 20mm 20x60-74x126xD20

Solid Carbide End Mill 20mm 20x60-74x126xD20

$292.97 - $292.97
$292.97
$292.97 - $292.97
$292.97

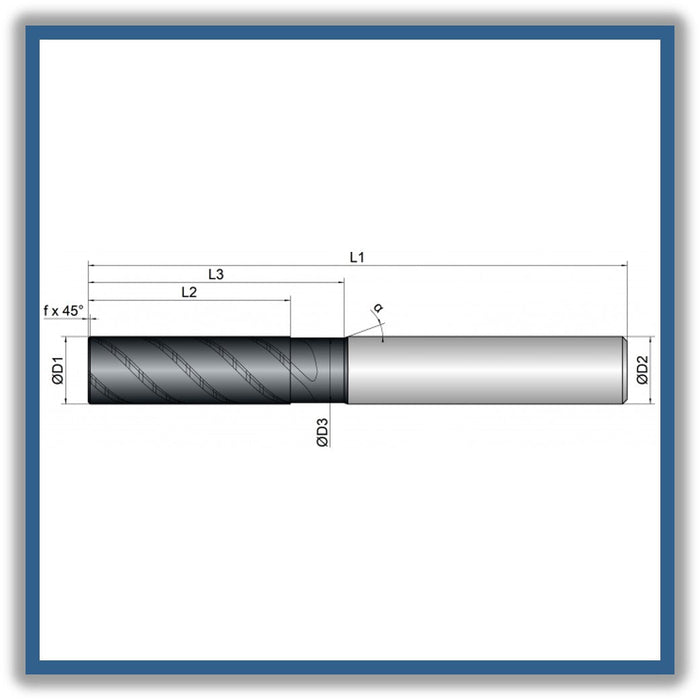

D1 (Cutting diameter): 20mm
D3 (Undercut diameter): 19.4mm
L2 ( Length of cut): 60mm
L3 (Length of undercut): 74mm
L1 (Total length): 126mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 4


  • Optimized chip chambers for a large chip volume
  • Adapted roughing teeth for small chips
  • For roughing under HPC conditions

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: BetaUni Iron

Applications: X, Y, Helical

Features:  Extended Trochoidal Cutting, High Performance Cutting, Universal Machining, Unequal Tooth Pitch, Trimming, Full Slot, Serrated Edge, 3XD, Center Cutting, Corner Bevel

item code: 171008
