Solid Carbide End Mill 16mm 16R0.3x64x125xD16

Solid Carbide End Mill 16mm 16R0.3x64x125xD16

$258.38 - $258.38
$258.38
$258.38 - $258.38
$258.38

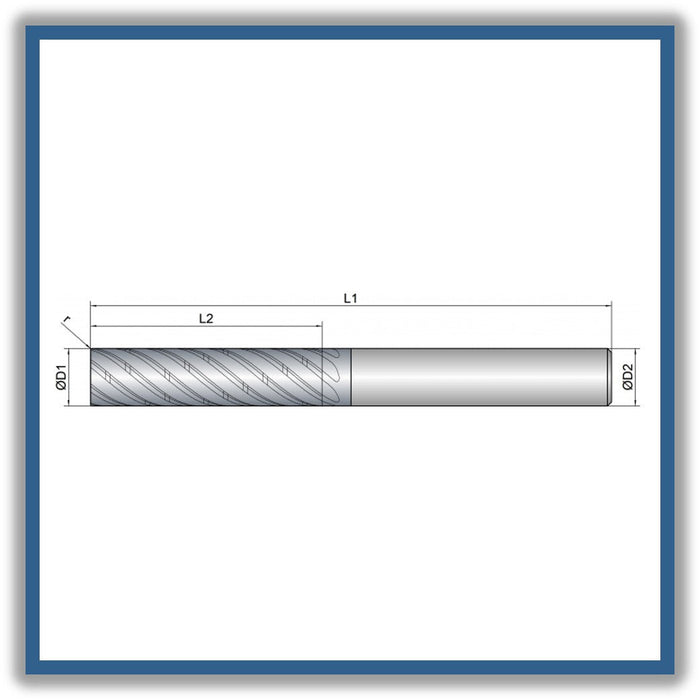

D1 (Cutting diameter): 16mm
L2 ( Length of cut): 64mm
L1 (Total length): 125mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 7
R Corner radius: 0.3mm
Helical pitch: 40




  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut

  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • 7 cutting edges for best performance with a unique tool life
  • Ideal chip evacuation at the highest feed rates
  • For roughing and finishing under ETC conditions



 * MADE IN GERMANY *






Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X

Features:  Unequal Tooth Pitch, Chip Breaking, 4xD, Dynamic Helical Pitch, Non-Center Cutting, Corner Radius

item code: 138005
