Solid Carbide End Mill 16mm 16R0.3x32-44x92xD16
Original price
-
Original price
Original price
-
Current price

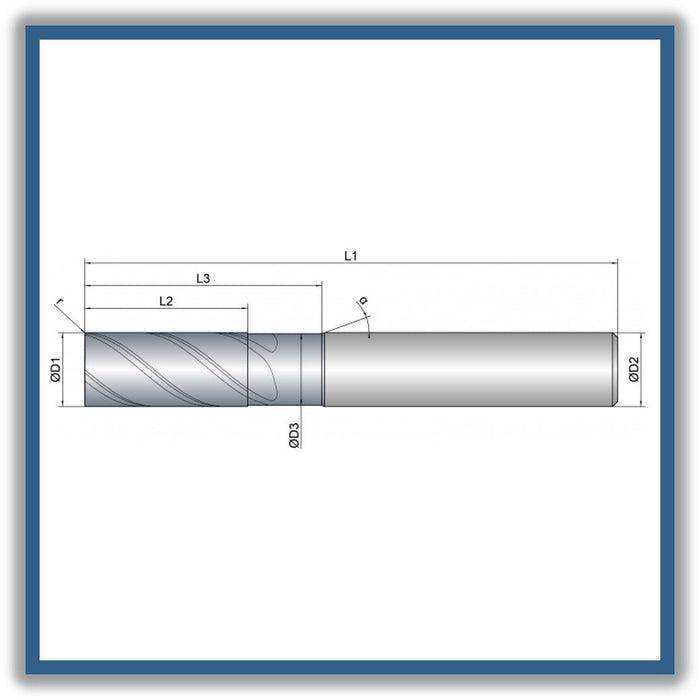

D1 (Cutting diameter):16mm
D3 (Undercut diameter):15.5mm
L2 ( Length of cut): 32mm
L3 (Length of undercut):44mm
L1 (Total length): 92mm
D2 (Shank diameter):16mm
Z (Number of cutting edges): 4
R Corner radius: 0.3mm
Helical pitch: 40
- Unequal tooth pitch combined with variable helix for smooth
running
- Optimized face for process reliable, helical diving and
immersion
- Reinforced cutting edge with corner protection radius
- For roughing and finishing, up to 1xD full slot
- Designed for maximum tool life when trimming and trochoidal
milling
- Unleashes its full performance potential when milling with air
cooling
* MADE IN GERMANY *
Cooling: air-cooled, dry
Tolerance: e8
Coating: AlphaFerro Platin X
Strategy: Extended Trochoidal Cutting, High Performance Cutting
Applications: Trimming, Full Slot, X, Y, Helical
Features: Unequal Tooth Pitch, 2xD, Dynamic Helical Pitch, Center Cutting, Corner Radius
item code: 115009
