Solid Carbide End Mill 16mm 16R0.3x22x82xD16
Original price
-
Original price
Original price
-
Current price

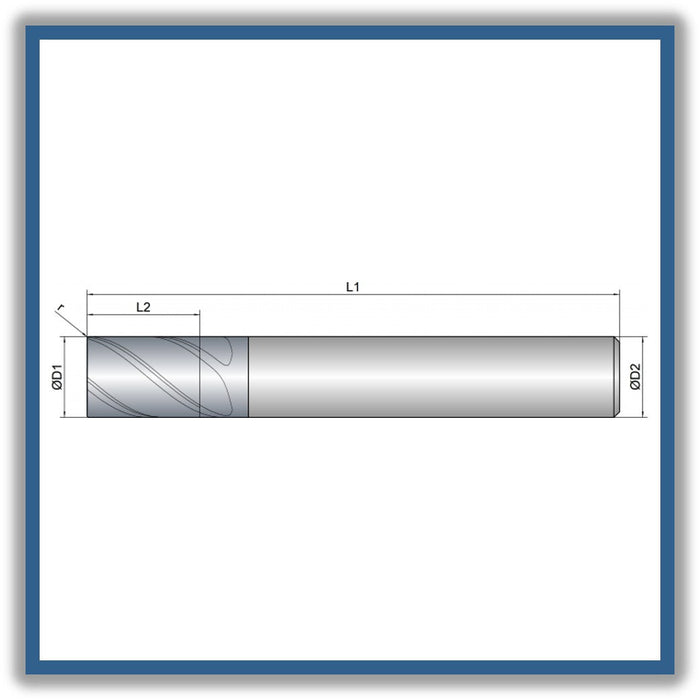

D1 (Cutting diameter):66mm
L2 ( Length of cut): 22mm
L1 (Total length): 82mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 4
R (Corner radius):0.2mm
Helical pitch: 40
-
Unequal tooth pitch combined with variable helix for smooth running
-
Optimized face for process reliable, helical diving and immersion
-
Reinforced cutting edge with corner protection radius
- Unleashes its full performance potential when milling with air cooling
- For roughing and finishing, up to 1xD full slot
- Designed for maximum tool life when trimming and trochoidal milling
* MADE IN GERMANY *
Cooling: air-cooled, dry
Tolerance: e8
Coating: AlphaFerro Platin X
Strategy: High Performance Cutting, Extended Trochoidal Cutting
Applications: Trimming, Full Slot, X, Y, Helical
Features: Unequal Tooth Pitch, Dynamic Helical Pitch, Center Cutting, 1.5xD, Corner Radius
item code: 131009
