Solid Carbide End Mill 12mm 12x6.8-56x119xD12

Solid Carbide End Mill 12mm 12x6.8-56x119xD12

$113.51 - $113.51
$113.51
$113.51 - $113.51
$113.51

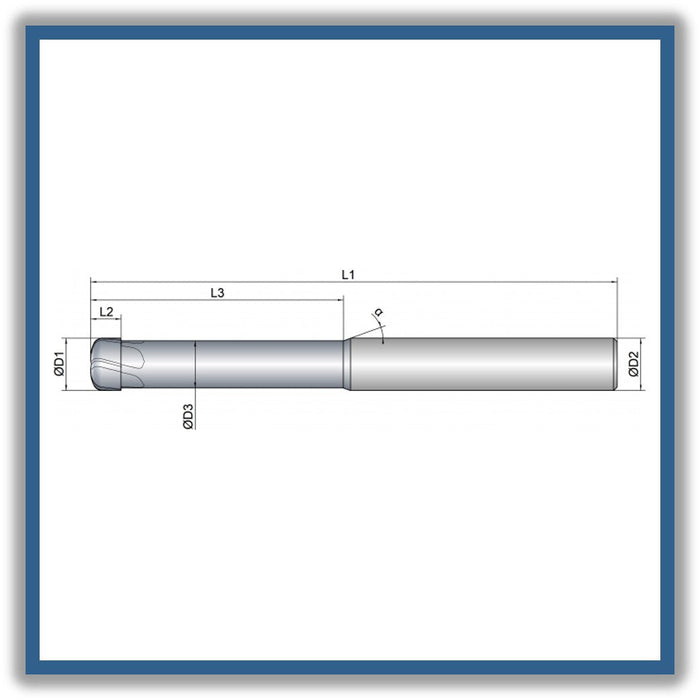

D1 (Cutting diameter): 12mm
D3 (Undercut diameter): 11mm
L2 ( Length of cut): 6.8mm
L3 (Length of undercut): 56mm
L1 (Total length): 119mm
D2 (Shank diameter): 12mm
Z (Number of cutting edges): 5
Helical pitch: 15

  • Vertical absorption of the cutting force through special division of the cutting edges
  • Geometry with tangential transitions for HSC milling
  • Soft cut through targeted positive rake angles

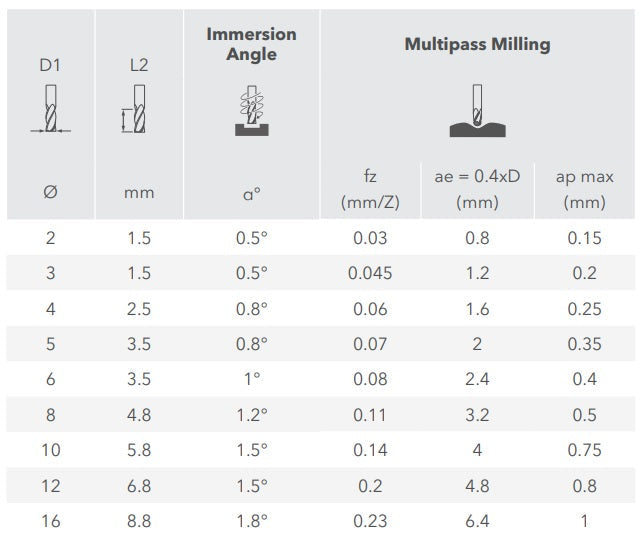

  • Check programming radius and ap max. according to the variant table
  • Long version for deeper cavities
  • For roughing and finishing under HSC conditions

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: h9

Coating: AlphaFerro Platin X

Strategy: High Speed Cutting

Applications: Multipass Milling, X, Y, Helical

Features: Unequal Tooth Pitch, Non-Center Cutting, 0,5XD, Corner Radius

item code:188008
