Solid Carbide End Mill 12mm 12R6x16x120xD12
Original price
$0
Original price
$110.96
-
Original price
$110.96
Original price
Current price
$110.96
$110.96
-
$110.96
Current price
$110.96

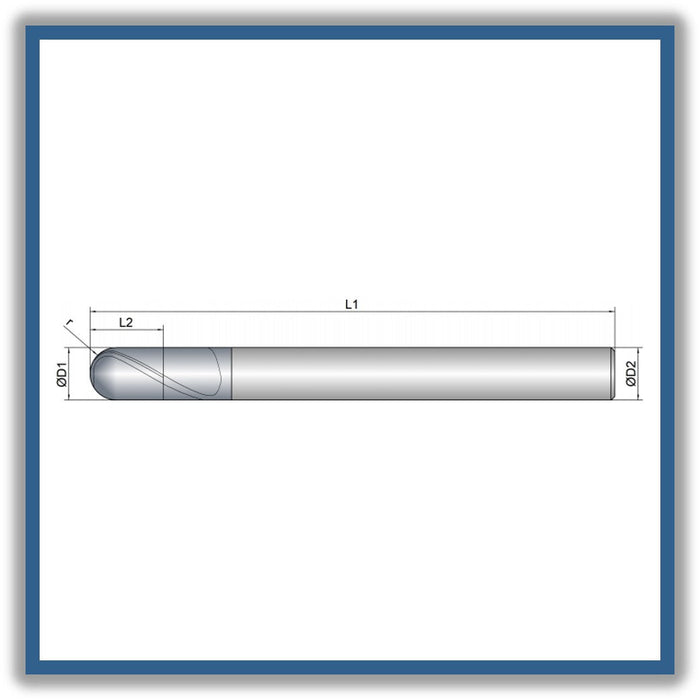

D1 (Cutting diameter): 12mm
L2 ( Length of cut): 16mm
L1 (Total length): 120mm
D2 (Shank diameter): 12mm
Z (Number of cutting edges): 2
R Corner radius: 6
Helical pitch: 30
- Optimized cross cutting edge for minimal face wear
- Innovative shape of the chip chamber for effective chip evacuation
- Defined microbevel for support and stabilization
- Designed for use with cooling lubricant
- Radius tolerance r ≤ 2 mm: ± 0.003 mm
- Radius tolerance r > 2 mm: ± 0.005 mm
- For use in HSC milling
- For roughing and finishing
- Overlong version for deepest cavities
* MADE IN GERMANY *
Cooling: water max
Tolerance: f8
Coating: AlphaFerro Platin X
Strategy: High Speed Cutting
Applications: Engraving, Multipass Milling, X, Y, Z
Features: Center Cutting, 1XD, Corner Radius
item code:180011
