Solid Carbide End Mill 10mm 10R5x14x85xD10

Solid Carbide End Mill 10mm 10R5x14x85xD10

$51.62 - $51.62
$51.62
$51.62 - $51.62
$51.62

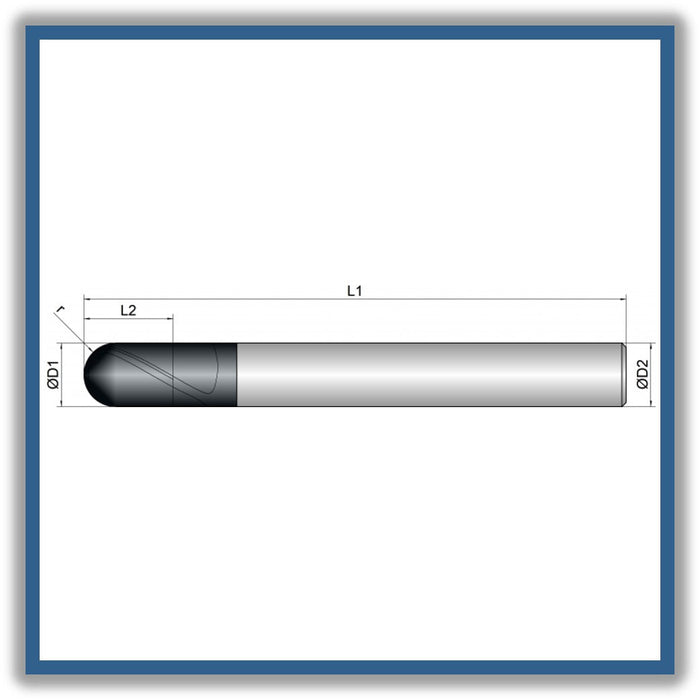

D1 (Cutting diameter): 10mm
L2 ( Length of cut): 14mm
L1 (Total length): 85mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 2
R Corner radius: 5mm
Helical pitch: 30


  • Geometry of the face cutting edge designed for a soft and even cut
  • Adapted chip chambers for roughing and finishing
  • Long version
  • Suitable for wet and dry machining



 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: f8

Coating: BetaUni Iron

Strategy: High Speed Cutting, Universal Machining

Applications: Engraving, Multipass Milling, X, Y, Z

Features: 1xD, Center Cutting, Corner Radius

item code: 160011
