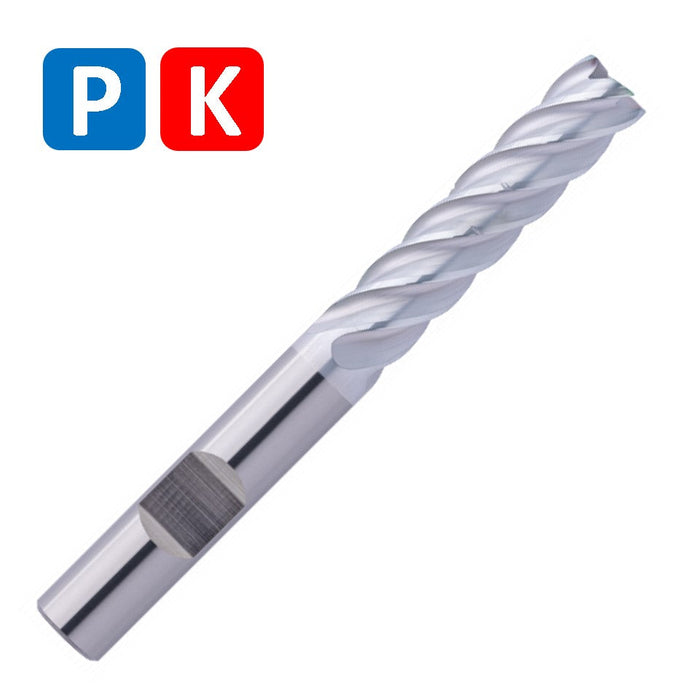

Solid Carbide End Mill 16mm 16R1x64-x125xD16

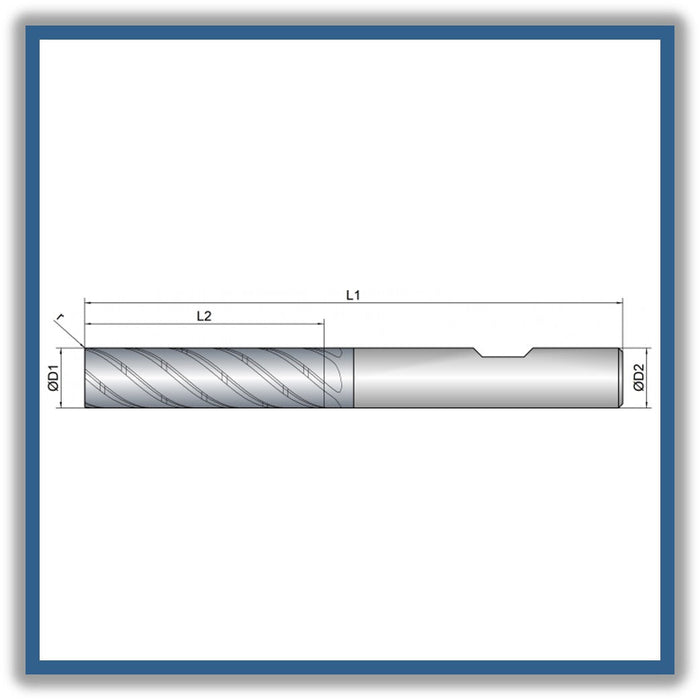

D1 (Cutting diameter): 16mm
L2 (Length of cut): 64mm
L1 (Total length): 125mm
D2 (Shank diameter): 16
Z (Number of cutting edges): 5
R Corner radius: 1
Helical pitch: 40

• Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
• Adapted chip chambers for trochoidal milling
• Optimized design of the chip breakers for maximum tool life
• Ideal chip evacuation, even with high radial depth of cutting
• For roughing and finishing under ETC conditions
• For process reliable, helical immersion

Cooling: Air cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y, Helical

Features: Unequal tooth pitch, Chip breaking, 4XD, Dynamic helical pitch, Center cutting, Corner radius

item code: 326019
