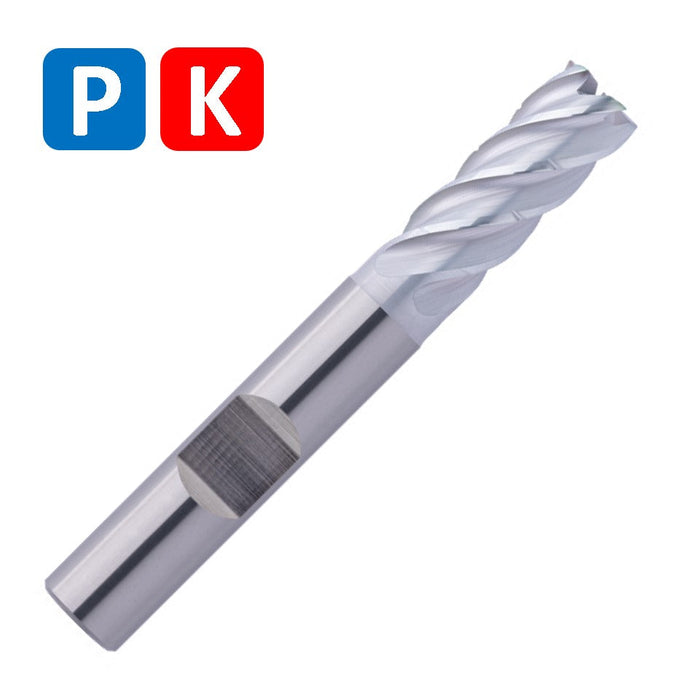

Solid Carbide End Mill 6mm 6R1x13-19x57xD6

Solid Carbide End Mill 6mm 6R1x13-19x57xD6

$49.73 - $49.73
$49.73
$49.73 - $49.73
$49.73

D1 (Cutting diameter): 6mm
D3 (Undercut diameter): 5.8mm
L2 (Length of cut): 13mm
L3 (Length of undercut): 19mm
L1 (Total length): 57mm
D2 (Shank diameter): 6
Z (Number of cutting edges): 5
R Corner radius: 1
Helical pitch: 40
  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion

 * MADE IN GERMANY *



Cooling: Air cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y, Helical

Features: Unequal tooth pitch, Chip breaking, 2XD, Dynamic helical pitch, Center cutting, Corner radius

item code: 324003
