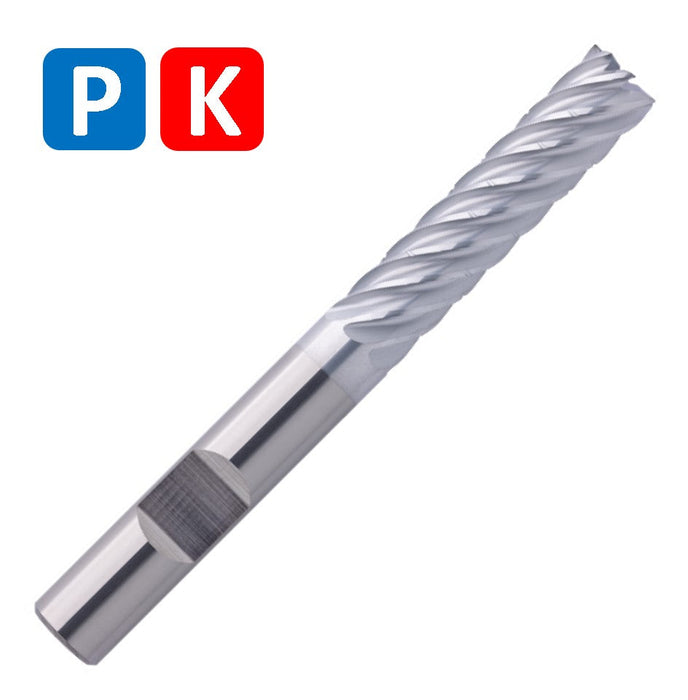

Solid Carbide End Mill 20mm 20R2x80-x150xD20

D1 (Cutting diameter): 20mm
L2 (Length of cut): 80mm
L1 (Total length): 150mm
D2 (Shank diameter): 20
Z (Number of cutting edges): 7
R Corner radius: 2
Helical pitch: 40

• Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
• Adapted chip chambers for trochoidal milling
• Optimized design of the chip breakers for maximum tool life
• 7 cutting edges for best performance with a unique tool life
• Ideal chip evacuation at the highest feed rates
• For roughing and finishing under ETC conditions

Cooling: Air cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X

Features: Unequal tooth pitch, Chip breaking, 4XD, Dynamic helical pitch, Non-Center cutting, Corner radius

item code: 322024
