Solid Carbide End Mill 16mm 16R2x32-42x92xD16

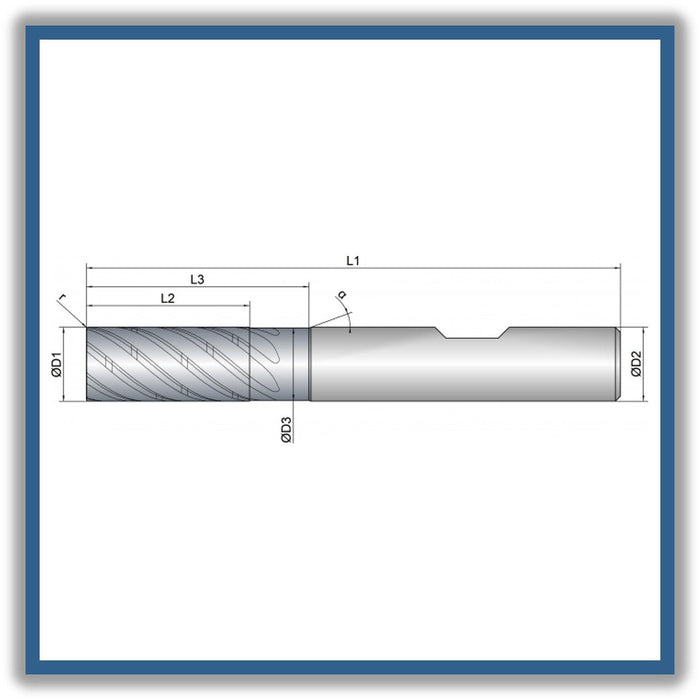

D1 (Cutting diameter): 16mm
D3 (Undercut diameter): 15.8mm
L2 (Length of cut): 32mm
L3 (Length of undercut): 42mm
L1 (Total length): 92mm
D2 (Shank diameter): 16
Z (Number of cutting edges): 7
R Corner radius: 2
Helical pitch: 40

• Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
• Adapted chip chambers for trochoidal milling
• Optimized design of the chip breakers for maximum tool life
• 7 cutting edges for best performance with a unique tool life
• Ideal chip evacuation at the highest feed rates
• For roughing and finishing under ETC conditions

Cooling: Air cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X

Features: Unequal tooth pitch, Chip breaking, 2XD, Dynamic helical pitch, Non-Center cutting, Corner radius

item code: 320020
