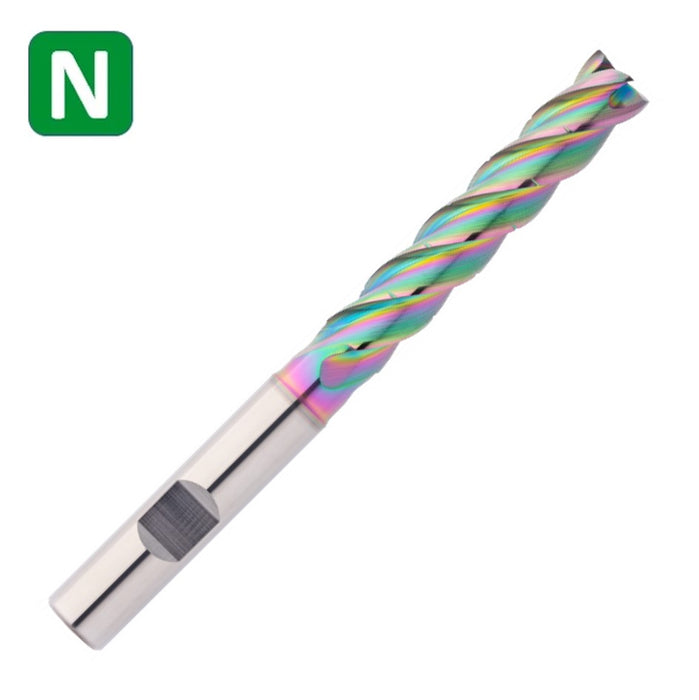

Solid Carbide End Mill 5mm 5R0.15x26-36x75xD6
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 5mm
D3 (Undercut diameter): 4.5mm
L2 (Length of cut): 26mm
L3 (Length of undercut): 36mm
L1 (Total length): 75mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
R Corner radius: 0.15mm
Helical Pitch: 38
- Chip breaker for short, defined chip length
- Unequal tooth pitch combined with variable helical pitch for smooth running
- Reinforced face with 2 cutting edges to the center
- Ideal chip evacuation, even with high radial depth of cutting
- For roughing and finishing under ETC conditions
- For process reliable, helical immersion
* MADE IN GERMANY *
Cooling: Air cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: Extended Trochoidal Cutting
Applications: Trimming, X, Y, Helical
Features: Unequal tooth pitch, Chip breaking, 5XD, Dynamic helical pitch, Center cutting, Corner radius
item code: 314001
