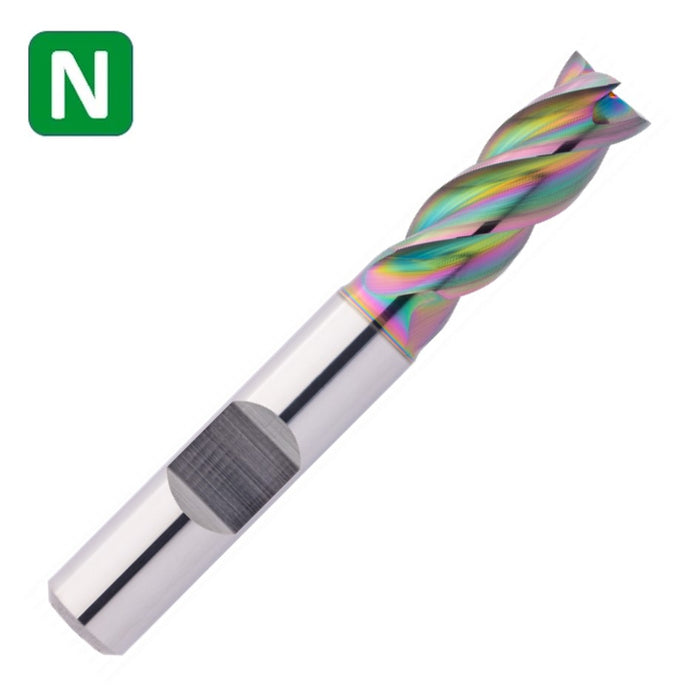

Solid Carbide End Mill 2mm 2R0x6-13x57xD6
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 2mm
D3 (Undercut diameter): 1.8mm
L2 (Length of cut): 6mm
L3 (Length of undercut): 13mm
L1 (Total length): 57mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
Helical Pitch: 38
- Extra large chip chambers for ideal chip evacuation
- Unequal tooth pitch combined with variable helical pitch for smooth running
- Reinforced face with 2 cutting edges to the center
- Perfected for high radial depth of cutting and full slot milling
- For process reliable, helical diving and immersion
- For roughing and finishing, up to 1.5xD full slot
* MADE IN GERMANY *
Cooling: Air cooled, dry, water min, water max
Tolerance: h8
Coating: AlphaSlide Rainbow
Strategy: Extended Trochoidal Cutting, High Performance Cutting
Applications: Trimming, Full slot, X, Y, Helical
Features: Unequal tooth pitch, 2XD, Dynamic helical pitch, Center cutting, Sharp-edged
item code: 310001
