Solid Carbide End Mill 20mm 20R0.3x60-70x125xD20
Original price
-
Original price
Original price
-
Current price

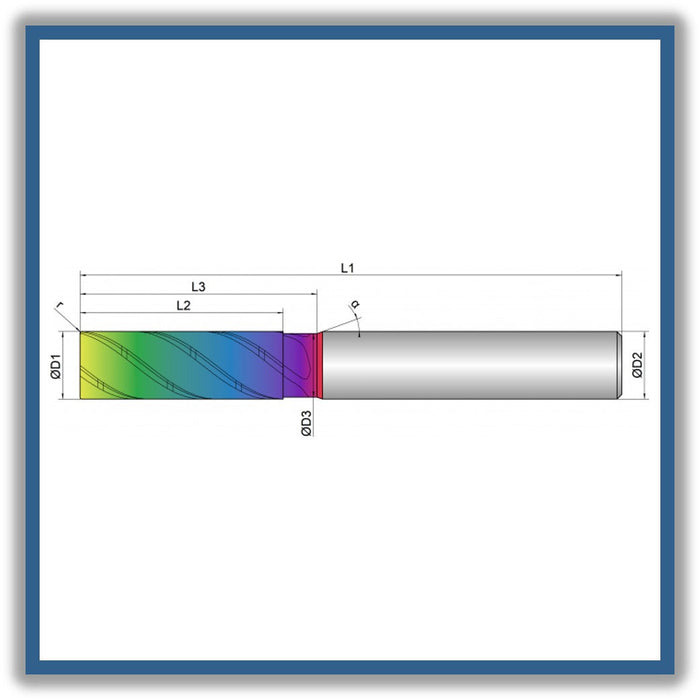

D1 (Cutting diameter): 20mm
D3 (Undercut diameter): 19.4mm
L2 ( Length of cut): 60mm
L3 (Length of undercut): 70mm
L1 (Total length): 125mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 4
R Corner radius: 0.3mm
Helical pitch: 38
- Unequal tooth pitch combined with variable helical pitch for smooth running
- Highly polished chip space for safe chip evacuation
- Reinforced face for process reliable, helical diving
- For roughing and finishing
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: Extended Trochoidal Cutting
Applications: Trimming, X, Y, Helical
Features: Unequal Tooth Pitch, Chip breaking, 3xD, Dynamic Helical Pitch, Center Cutting, Corner Radius
item code: 146007
