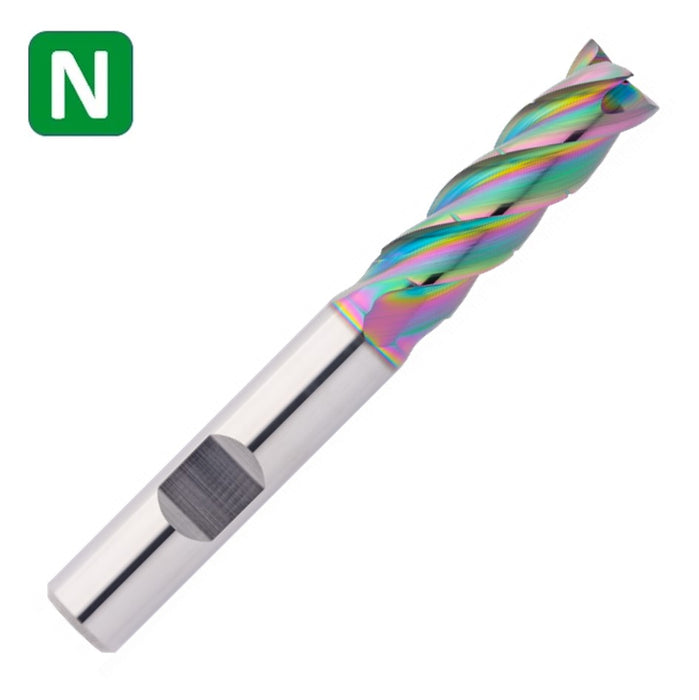

Solid Carbide End Mill 20mm 20R0.3x60-70x125xD20

Solid Carbide End Mill 20mm 20R0.3x60-70x125xD20

$289.46 - $289.46
$289.46
$289.46 - $289.46
$289.46


D1 (Cutting diameter): 20mm
D3 (Undercut diameter): 19.4mm
L2 (Length of cut): 60mm
L3 (Length of undercut): 70mm
L1 (Total length): 125mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 4
R Corner radius: 0.3mm
Helical Pitch: 38

  • Chip breaker for short, defined chip length
  • Unequal tooth pitch combined with variable helical pitch for smooth running
  • Reinforced face with 2 cutting edges to the center
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical diving and immersion

 * MADE IN GERMANY *



Cooling: Air cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y, Helical

Features: Unequal tooth pitch, Chip breaking, 3XD, Dynamic helical pitch, Center cutting, Corner radius

item code: 312007
