Solid Carbide End Mill 16mm 16x67-72x125xD16
Original price
-
Original price
Original price
-
Current price

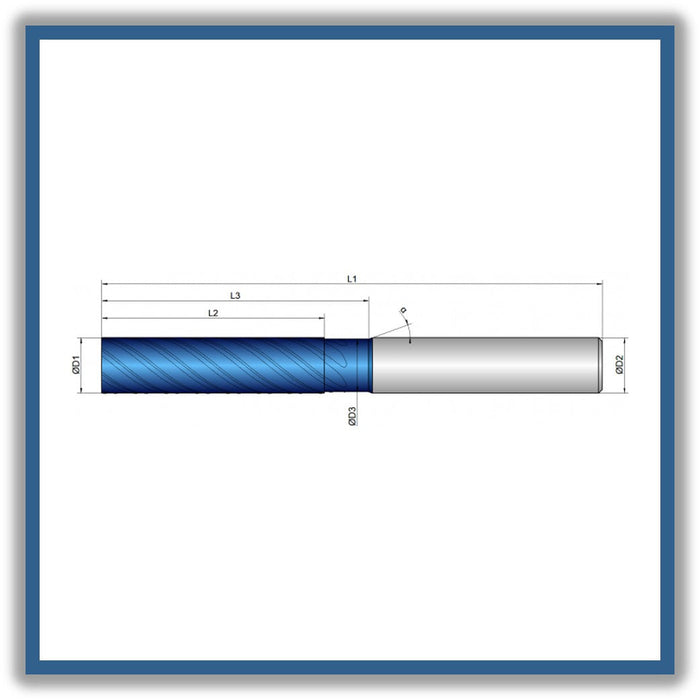

D1 (Cutting diameter): 16mm
D3 (Undercut diameter): 15.5mm
L2 ( Length of cut): 67mm
L3 (Length of undercut): 72mm
L1 (Total length): 125mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 7
Helical pitch: 39
- Slightly conical tool core and special helical pitch
- 7 specially finished cutting edges with optimized geometry
- Face-Finish-bevel for smooth workpiece surfaces
- For excellent surfaces and maximum dimensional accuracy
- 7 cutting edges for highest feed rates
* MADE IN GERMANY *
Cooling: water max
Tolerance: e8
Coating: AlphaNox Navy X
Strategy: High Performance Cutting
Applications: Trimming, X
Features: Unequal Tooth Pitch, 4XD, Dynamic Helical Pitch, Non-Center Cutting, Sharp-Edged
item code:192005
