Solid Carbide End Mill 10mm 10R2x24-30x72xD10

Solid Carbide End Mill 10mm 10R2x24-30x72xD10

$101.89 - $101.89
$101.89
$101.89 - $101.89
$101.89

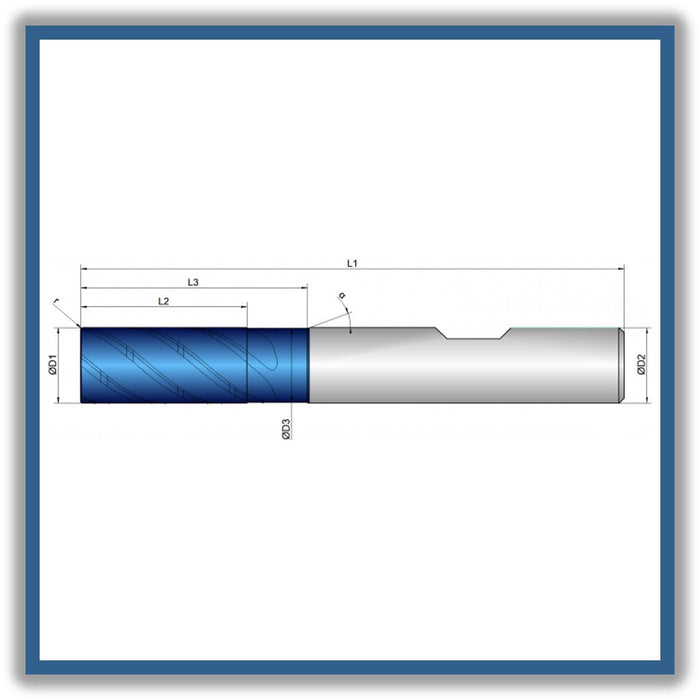

D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9.8mm
L2 (Length of cut): 24mm
L3 (Length of undercut): 30mm
L1 (Total length): 72mm
D2 (Shank diameter): 10
Z (Number of cutting edges): 6
R Corner radius: 2
Helical pitch: 40
  • 6 cutting edges for best performance and an excellent material removal rate
  • Optimized cutting edges and chip chambers to effectively prevent built-up edges and chip stuck
  • Ideal chip evacuation, even with high feed rates and big radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion

 * MADE IN GERMANY *



Cooling: Water max

Tolerance: e8

Coating: AlphaNox Navy X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y, Helical

Features: Unequal tooth pitch, Chip breaking, 2XD, Dynamic helical pitch, Non-center cutting, Corner radius

item code: 332012
