Solid Carbide End Mill 8mm 8R1x21-25x63xD8

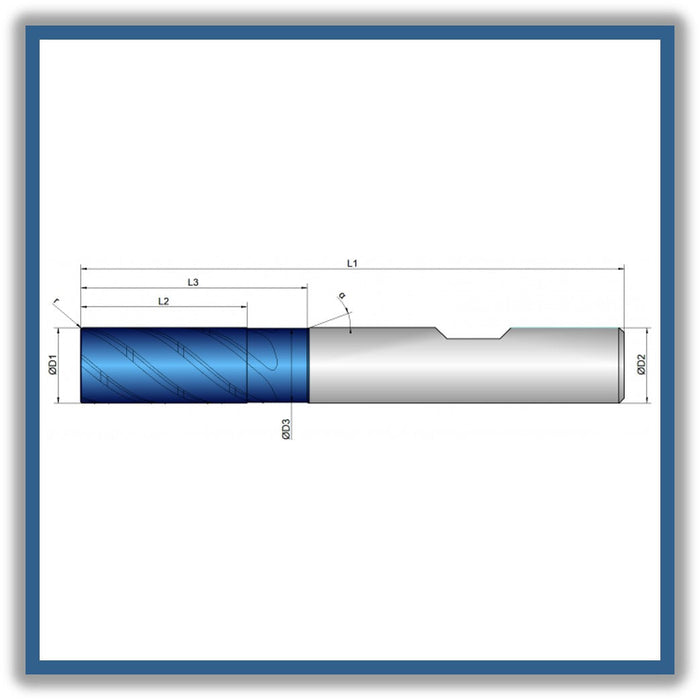

D1 (Cutting diameter): 8mm
D3 (Undercut diameter): 7.8mm
L2 (Length of cut): 21mm
L3 (Length of undercut): 25mm
L1 (Total length): 63mm
D2 (Shank diameter): 8
Z (Number of cutting edges): 6
R Corner radius: 1
Helical pitch: 40

• 6 cutting edges for best performance and an excellent material removal rate
• Optimized cutting edges and chip chambers to effectively prevent built-up edges and chip stuck
• Ideal chip evacuation, even with high feed rates and big radial depth of cutting
• For roughing and finishing under ETC conditions
• For process reliable, helical immersion

Cooling: Water max

Tolerance: e8

Coating: AlphaNox Navy X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y, Helical

Features: Unequal tooth pitch, Chip breaking, 2XD, Dynamic helical pitch, Non-center cutting, Corner radius

item code: 332007
