Solid Carbide End Mill 8mm 8R0.2x40x90xD8

Solid Carbide End Mill 8mm 8R0.2x40x90xD8

$92.43 - $92.43
$92.43
$92.43 - $92.43
$92.43

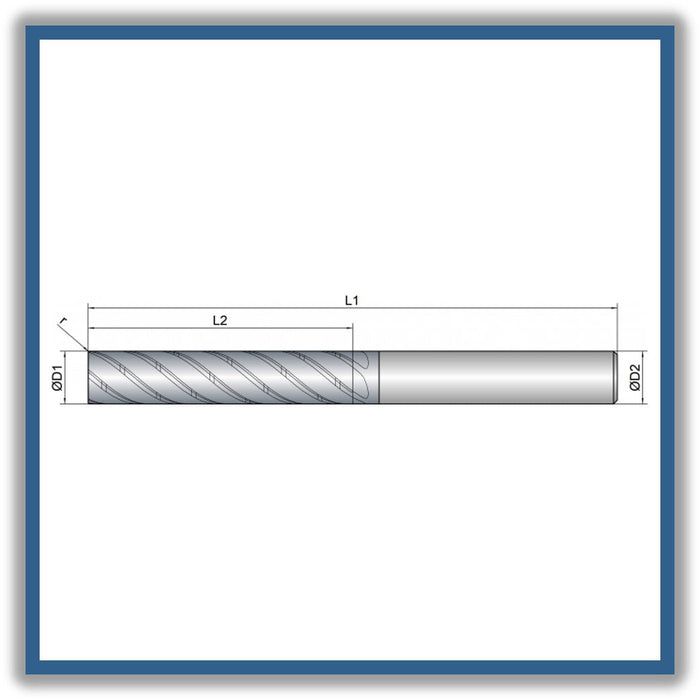

D1 (Cutting diameter): 8mm
L2 ( Length of cut): 40mm
L1 (Total length): 90mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 5
R Corner radius: 0.2mm
Helical pitch: 40


  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion



 * MADE IN GERMANY *




Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y, Helical

Features:  Unequal Tooth Pitch, Chip Breaking, 5xD, Dynamic Helical Pitch, Center Cutting,  Corner Radius

item code: 135001
