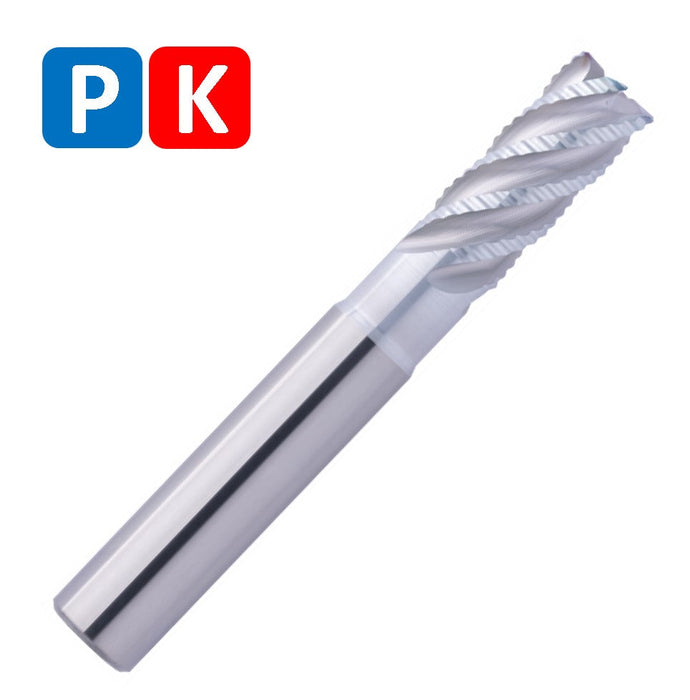

Solid Carbide End Mill 8mm 8R0.2x19-25x63xD8

Solid Carbide End Mill 8mm 8R0.2x19-25x63xD8

$78.65 - $78.65
$78.65
$78.65 - $78.65
$78.65


D1 (Cutting diameter): 8mm
D3 (Undercut diameter): 7.6mm
L2 ( Length of cut): 19mm
L3 (Length of undercut): 25mm
L1 (Total length): 63mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 5
R Corner radius: 0.2
Helical pitch: 45

  • Optimized roughing teeth for soft cut and small chips
  • Ascending reinforced tool core for maximum stability
  • Variable helical pitch and unequal tooth pitch for smooth running
  • With central inner cooling
  • Extreme material removal at the highest performance
  • Also ideally designed for trochoidal milling
  • For roughing, up to 2xD full slot
  • For process reliable, helical immersion

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting, High Performance Cutting

Applications: Trimming, Full Slot, X, Y, Helical

Features: Unequal Tooth Pitch, Coolant Duct System, Serrated Edge, 2XD, Dynamic Helical Pitch, Center Cutting, Corner Radius

item code:185003
