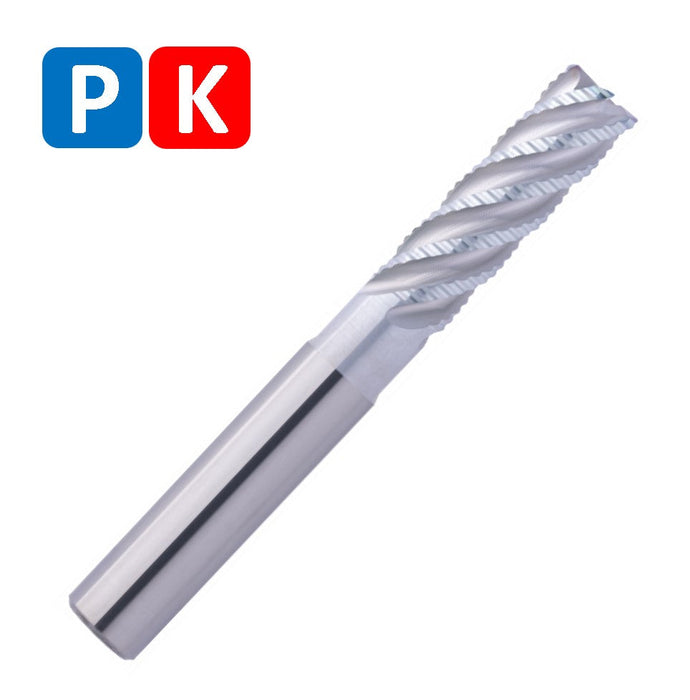

Solid Carbide End Mill 6mm 6R0.2x18-24x63xD6
Original price
$0
Original price
$66.69
-
Original price
$66.69
Original price
Current price
$66.69
$66.69
-
$66.69
Current price
$66.69
D1 (Cutting diameter): 6mm
D3 (Undercut diameter): 5.6mm
L2 ( Length of cut): 18mm
L3 (Length of undercut): 24mm
L1 (Total length): 63mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 5
R Corner radius: 0.2
Helical pitch: 45
- Optimized roughing teeth for soft cut and small chips
- Ascending reinforced tool core for maximum stability
- Variable helical pitch and unequal tooth pitch for smooth running
- Extreme material removal at the highest performance
- Also ideally designed for trochoidal milling
- For roughing, up to 2xD full slot
- For process reliable, helical immersion
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: e8
Coating: AlphaFerro Platin X
Strategy: Extended Trochoidal Cutting, High Performance Cutting
Applications: Trimming, Full Slot, X, Y, Helical
Features: Unequal Tooth Pitch, Serrated Edge, 3XD, Dynamic Helical Pitch, Center Cutting, Corner Radius
item code:184002
