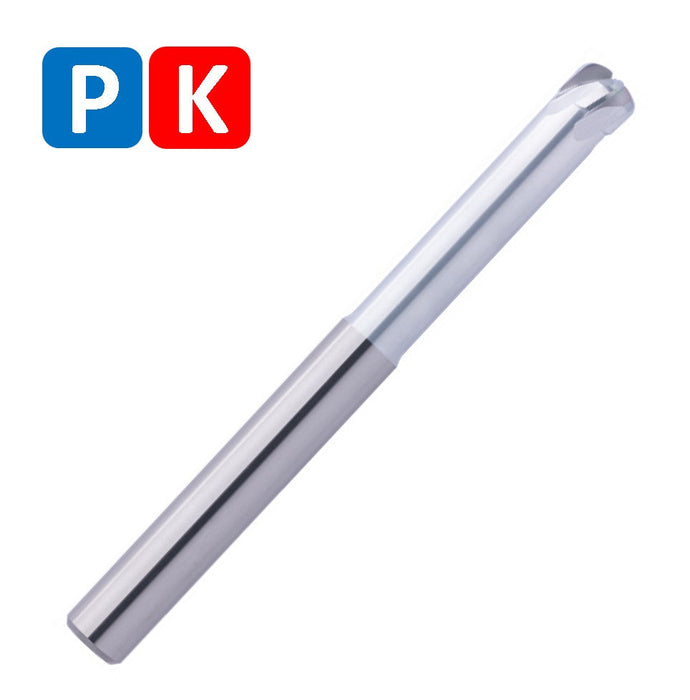

Solid Carbide End Mill 16mm 16x8.8-65x150xD16
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 16mm
D3 (Undercut diameter): 14.5mm
L2 ( Length of cut): 8.8mm
L3 (Length of undercut): 65mm
L1 (Total length): 150mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 5
Helical pitch: 15
- Vertical absorption of the cutting force through special division of the cutting edges
- Geometry with tangential transitions for HSC milling
- Soft cut through targeted positive rake angles
- Check programming radius and ap max. according to the variant table
- Long version for deeper cavities
- For roughing and finishing under HSC conditions
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h9
Coating: AlphaFerro Platin X
Strategy: High Speed Cutting
Applications: Multipass Milling, X, Y, Helical
Features: Unequal Tooth Pitch, Non-Center Cutting, 0,5XD, Corner Radius
item code:188009
