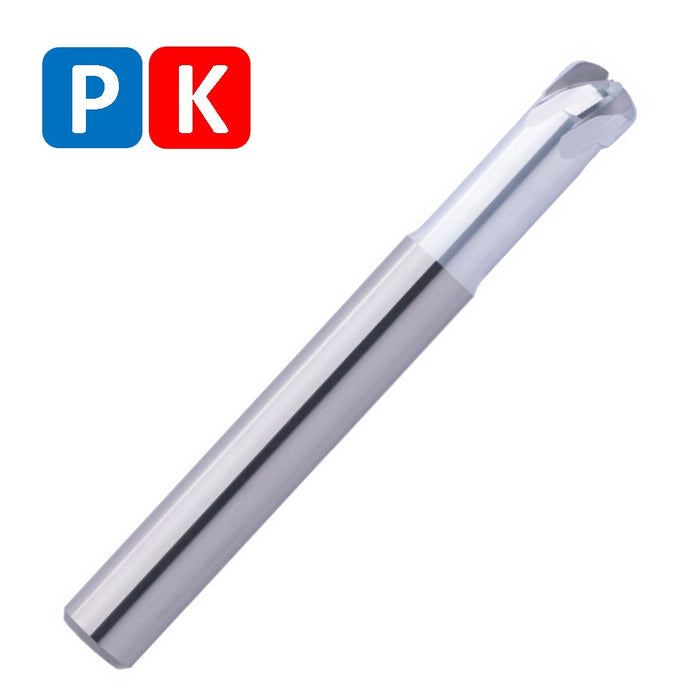

Solid Carbide End Mill 16mm 16x8.8-35x100xD16

Solid Carbide End Mill 16mm 16x8.8-35x100xD16

$110.81 - $110.81
$110.81
$110.81 - $110.81
$110.81


D1 (Cutting diameter): 16mm
D3 (Undercut diameter): 14.5mm
L2 ( Length of cut): 8.8mm
L3 (Length of undercut): 35mm
L1 (Total length): 100mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 5
Helical pitch: 15

  • Vertical absorption of the cutting force through special division of the cutting edges
  • Geometry with tangential transitions for HSC milling
  • Soft cut through targeted positive rake angles
  • Check programming radius and ap max. according to the variant table
  • For roughing and finishing under HSC conditions

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: h9

Coating: AlphaFerro Platin X

Strategy: High Speed Cutting

Applications: Multipass Milling, X, Y, Helical

Features: Unequal Tooth Pitch, Non-Center Cutting, 0,5XD, Corner Radius

item code:187009
