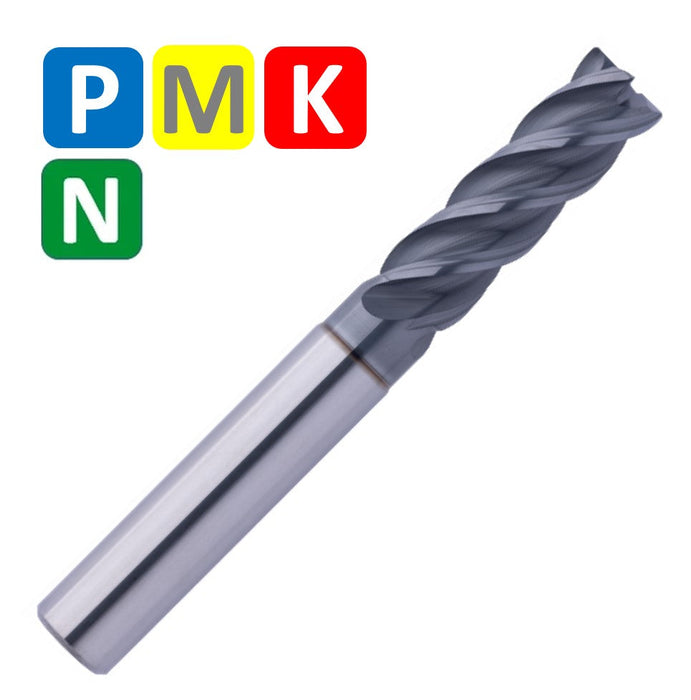

Solid Carbide End Mill 12mm 12C0.2x36-46x93xD12

Solid Carbide End Mill 12mm 12C0.2x36-46x93xD12

$86.49 - $86.49
$86.49
$86.49 - $86.49
$86.49
D1 (Cutting diameter): 12mm
D3 (Undercut diameter): 11.4mm
L2 ( Length of cut): 36mm
L3 (Length of undercut): 46mm
L1 (Total length): 93mm
D2 (Shank diameter): 12mm
Z (Number of cutting edges): 4
45DEG Corner chamfer: 0.2mm
Helical pitch: 40


  • Adapted clearance angle for reliable machining
  • Unequal tooth pitch for smooth running
  • Large chip chambers for good chip evacuation
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: BetaUni Iron

Strategy: Extended Trochoidal Cutting, High Performance Cutting, Universal Machining

Applications: Trimming, Full Slot, X, Y, Helical

Features: Unequal tooth pitch, 3xD, Center Cutting, Corner Bevel

item code: 156006
