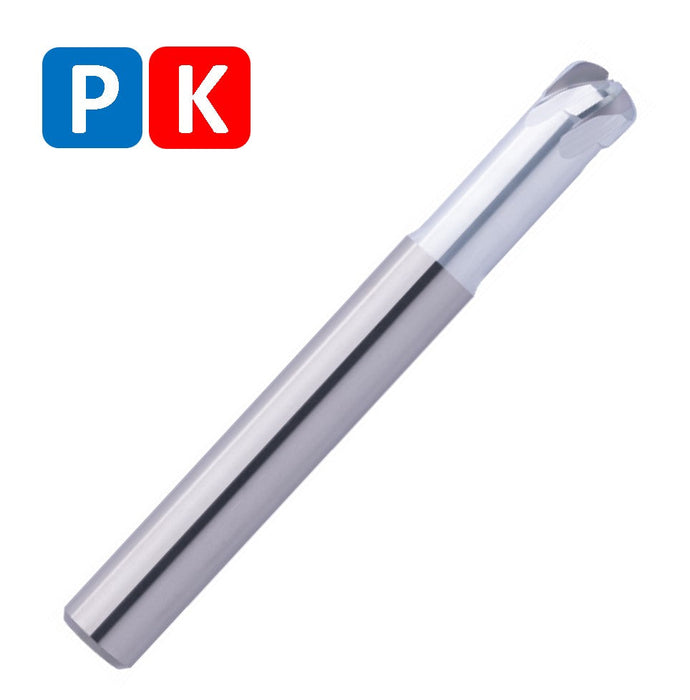

Solid Carbide End Mill 10mm 10x5.8-26x85xD10

Solid Carbide End Mill 10mm 10x5.8-26x85xD10

$67.84 - $67.84
$67.84
$67.84 - $67.84
$67.84


D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9mm
L2 ( Length of cut): 5.8mm
L3 (Length of undercut): 26mm
L1 (Total length): 85mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 5
Helical pitch: 15

  • Vertical absorption of the cutting force through special division of the cutting edges
  • Geometry with tangential transitions for HSC milling
  • Soft cut through targeted positive rake angles
  • Check programming radius and ap max. according to the variant table
  • For roughing and finishing under HSC conditions

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: h9

Coating: AlphaFerro Platin X

Strategy: High Speed Cutting

Applications: Multipass Milling, X, Y, Helical

Features: Unequal Tooth Pitch, Non-Center Cutting, 0,5XD, Corner Radius

item code:187007
