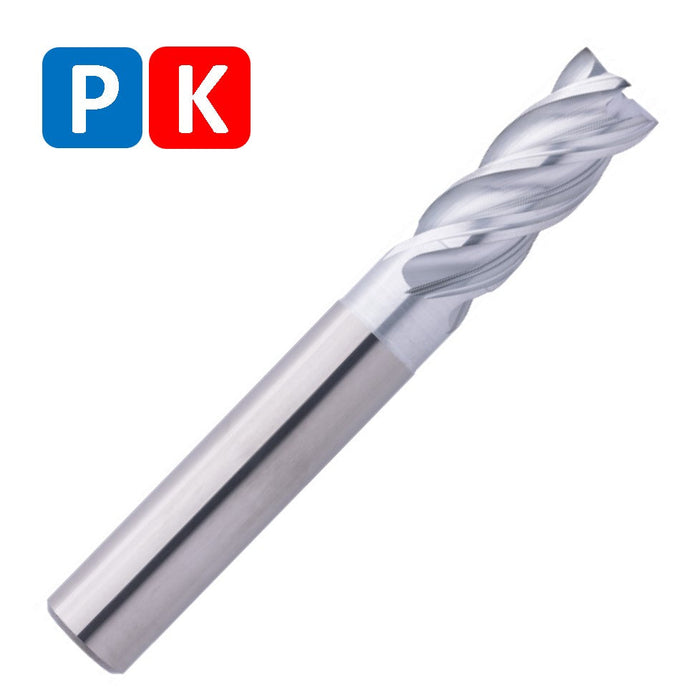

Solid Carbide End Mill 10mm 10R0.2x22-32x72xD10

Solid Carbide End Mill 10mm 10R0.2x22-32x72xD10

$70.54 - $70.54
$70.54
$70.54 - $70.54
$70.54


D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9.7mm
L2 ( Length of cut): 22m
L3 (Length of undercut): 32mm
L1 (Total length): 72mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 4


  • Unequal tooth pitch combined with variable helical pitch for smooth running
  • Reinforced cutting edge with corner protection radius
  • Enlarged chip chambers for flushing with cooling lubricant
  • Unleashes its full performance potential when milling with cooling lubricant
  • Designed for maximum removal rate when milling with high radial depth of cut and in the full slot up to 1.5xD
  • For process reliable ramping, helical immersion and diving (drilling) up to 1xD

 * MADE IN GERMANY *



Cooling: water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Applications: X, Y, Z, Helical

Features: Extended Trochoidal Cutting, High Performance Cutting, Unequal Tooth Pitch, Trimming, Full Slot, 2XD, Dynamic Helical Pitch, Center Cutting, Corner Radius

item code: 173006
